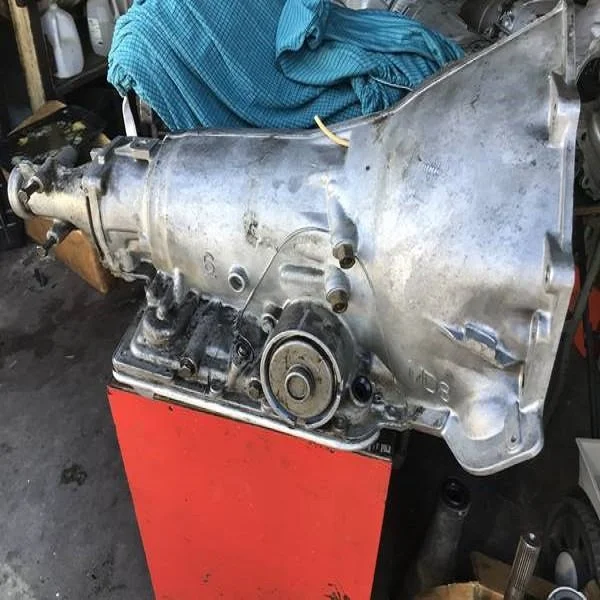

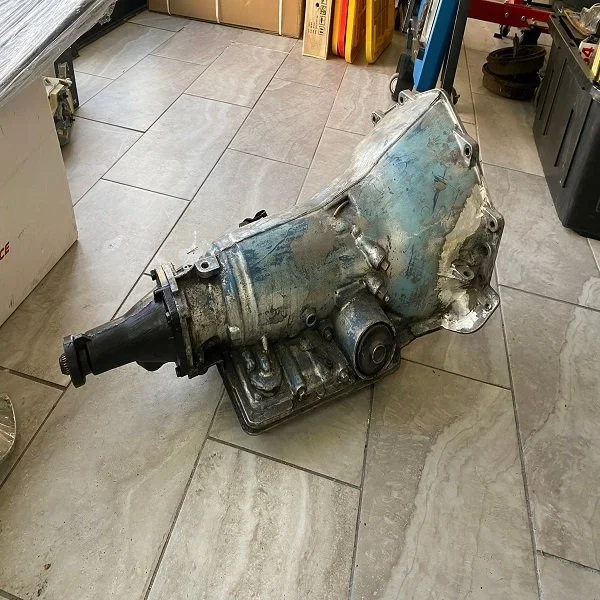

700R4 Transmission for Sale | GM 4-Speed Overdrive Automatic (1982 to 1992)

About This Transmission

The GM 700R4 is one of the most significant automatic transmission developments in American automotive history. Introduced in 1982 to replace the 3-speed TH350, it added a fourth overdrive gear with a 0.70:1 ratio- reducing engine RPM at highway speed by approximately 30 percent compared to direct drive. The fuel economy impact was immediate and substantial. Highway RPM in many applications dropped by as much as 800 to 1,200 rpm, translating to significant real-world fuel savings across the millions of C/K trucks, Camaros, Corvettes, and S-10 Blazers it was installed in.

The 700R4 also introduced a lockup torque converter to GM’s mainstream lineup- a converter that mechanically locks at cruise speed, eliminating the slip losses inherent in conventional fluid couplings and reducing the heat that those losses generate. At sustained highway speeds, a locked converter behaves like a direct mechanical connection between the engine and transmission- essentially eliminating one of the primary sources of transmission heat under highway driving.

The most important thing a 700R4 owner or buyer needs to know: the Throttle Valve (TV) cable is the 700R4’s most critical maintenance item. Unlike electronically controlled transmissions that adjust shift timing and pressure based on throttle position from an ECU, the 700R4 uses a mechanical TV cable to control clutch apply pressure. An incorrectly adjusted TV cable either allows the clutches to slip and burn (too slack) or prevents the transmission from upshifting properly (too tight). Either condition destroys the transmission. We disclose the TV cable adjustment requirement on every order.

Signs You Need a Replacement Transmission

• Slipping in 3rd to 4th gear- 3rd and 4th gear clutch pack wear, commonly caused by TV cable set too loose allowing clutch slippage under light load
• Delayed upshifts or refusal to shift into 4th- TV cable adjusted too tight or stuck governor
• Lockup converter shudder at cruise speed- torque converter clutch (TCC) wear or debris in the converter circuit
• Overheating with fluid discoloration to dark brown or burnt smell- external cooler needed, 700R4 runs hot under sustained towing without supplemental cooling
• Slipping in all gears- pump wear or fluid pressure loss from internal seal failure
• No reverse engagement- reverse input clutch failure

Known Problems With This Transmission

• TV cable- the single most common cause of 700R4 failure: The Throttle Valve cable connects to the carburetor or throttle body and controls hydraulic pressure inside the transmission. A cable adjusted too slack starves the clutch packs of apply pressure and causes slipping and burning. On carbureted swap applications, buyers frequently set the TV cable by feel rather than by the correct adjustment procedure, destroying the transmission within 500 to 1,000 miles. We flag the TV cable requirement on every order and recommend using an adjustable TV cable kit for any swap application.
• 27-spline input shaft on pre-1987 units: The early 700R4 (1982 to 1986) used a 27-spline input shaft that was undersized for the torque loads in truck and performance applications. Failure of the input shaft was common on early units behind high-torque engines. The 1987-and-newer 30-spline shaft is significantly stronger. We confirm input shaft spline count before every order.
• Lockup converter wiring on carbureted swap builds: The 700R4 lockup converter is controlled by the vehicle’s PCM in factory applications. In a swap into a carbureted vehicle predating computer controls, the lockup system requires either a standalone wiring kit or a manual switch. An unlocked converter runs hot at highway speed and reduces fuel economy. We advise on lockup wiring requirements for every swap application.
• Overheating under towing: The 700R4’s internal cooler circuit is adequate for street driving but insufficient for sustained towing. Any 700R4 used for towing should have an external auxiliary cooler added. Overheating destroys the 3-4 clutch pack discs and warps the valve body.
• Case length and driveshaft: At 23.375 inches, the 700R4 is slightly longer than the TH350 it commonly replaces. A shorter driveshaft or slip yoke adapter is typically required for a TH350-to-700R4 swap. We note case length on every unit.

700R4 and 4L60- Key Changes by Year

The 700R4 was continuously improved during its production run. Key milestones:

What Is Included- What Is Not Included

Vehicle Compatibility

The 700R4 was factory installed in the following GM vehicles:

The 700R4 is the most popular overdrive upgrade for classic GM vehicles originally equipped with a TH350 or TH400. The case is dimensionally similar to a TH350- fits most tunnels without modification- but is approximately 1 inch longer, requiring a shorter driveshaft. The bellhousing bolt pattern is standard GM V8 90-degree pattern including the 4.3L V6. CRITICAL: For any carbureted swap, use an adjustable TV cable kit and set it correctly using a TV cable gauge or specified procedure. Incorrect TV cable setup destroys the transmission.

Transmission compatibility: The 700R4 / 4L60 is NOT the same as the 4L60E. The 4L60E (1993 onward) is electronically controlled and cannot replace a 700R4 without a standalone transmission controller. Always confirm whether your vehicle uses a 700R4 or 4L60 (hydraulic) or a 4L60E (electronic).

Common Names and Search Terms

Used OEM vs Rebuilt- Which Is Right for You?

Used OEM is the right choice for a stock replacement in a C/K truck, Camaro, or Firebird- particularly where a gear-tested unit with confirmed input shaft spline count is needed at a fraction of rebuild cost. Our units are tested with the TV cable requirement and spline count disclosed before shipping.

A rebuilt 700R4 makes sense for a high-performance or high-torque build where a fresh 30-spline shaft, updated clutch packs, and a billet input drum provide the reliability margin for sustained use. Rebuilt 700R4s with performance upgrades typically run $900 to $2,000 or more. Call us to discuss options.

Condition and Inspection Process

• Gear engagement test through all 4 forward gears and reverse- slipping in any gear fails the unit
• Input shaft spline count confirmed- 27-spline (pre-1987) or 30-spline (1987 onward) documented before shipping
• Valve body inspection for warping or contamination- source of erratic shift patterns
• Fluid inspection for burnt smell, dark discoloration, or metal contamination- transmission overheating indicator
• TV cable attachment point inspected- connection integrity verified
• Case and pan inspected for cracks or external damage

Mileage varies by unit. Where available from the donor vehicle we provide it. Where mileage cannot be confirmed, we disclose this before your order is placed.

Buyer Tips- What to Know Before You Order

• TV cable adjustment is mandatory and critical: The 700R4 TV cable must be adjusted correctly for the specific carburetor or throttle body it is connected to. Use an adjustable TV cable kit for any swap application and follow the adjustment procedure in a 700R4 service manual. An incorrect adjustment destroys the transmission within 500 to 1,000 miles and is not covered by warranty.
• 30-spline shaft for any performance application: If your engine produces more than approximately 300 lb-ft of torque, specify a 1987-and-newer unit with the 30-spline input shaft. We confirm spline count before shipping.
• Lockup converter in a carbureted build: The 700R4 lockup torque converter must function to avoid overheating at highway speeds. For carbureted builds, install a standalone lockup wiring kit that uses a brake switch to disengage and a vacuum switch or manual switch to engage lockup above a set speed. Multiple quality aftermarket kits are available.
• External transmission cooler: Any 700R4 used for towing should have an external auxiliary cooler added, bypassing or supplementing the stock radiator cooler. The 700R4 runs hot under towing and the 3-4 clutch pack is the first casualty of overheating.
• Driveshaft length: The 700R4 is approximately 1 inch longer than the TH350. In most TH350-to-700R4 swaps, the driveshaft must be shortened or a slip yoke extension used. Measure before purchasing.

FAQs

What is the difference between the 700R4, 4L60, and 4L60E?
