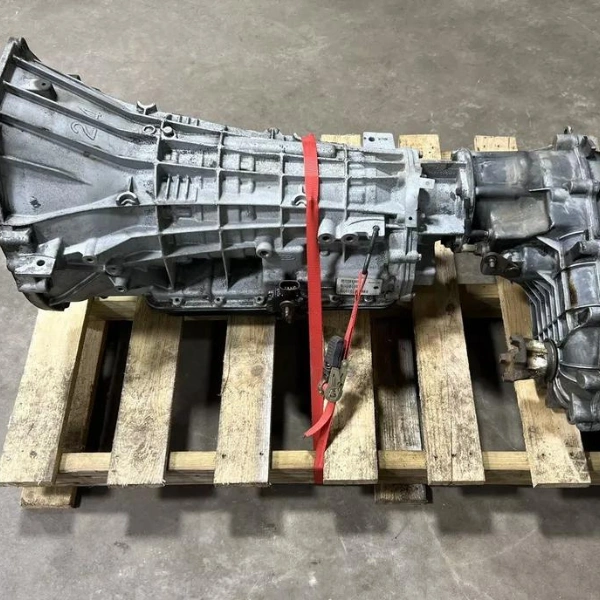

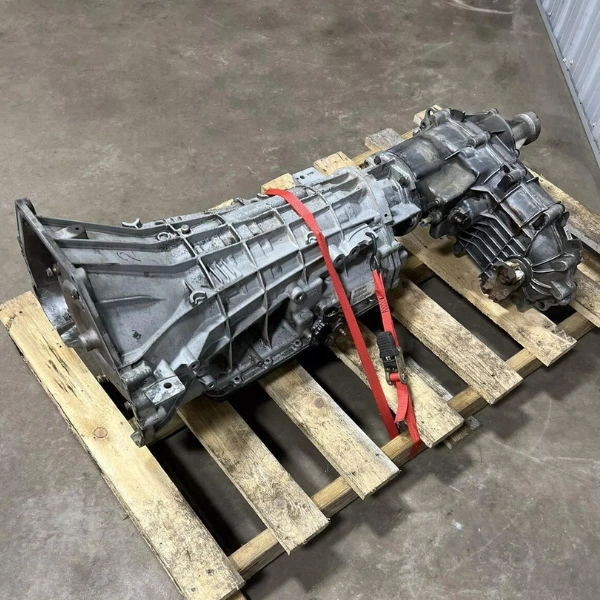

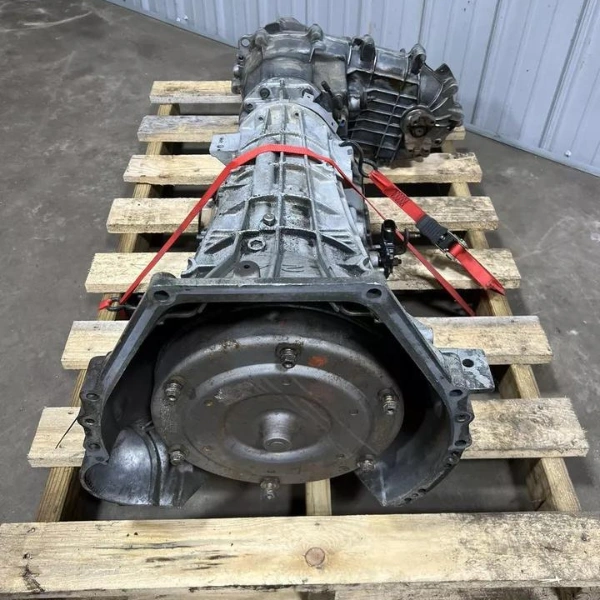

FORD E4OD TRANSMISSION FOR SALE

Ford E4OD Transmission for Sale: Your Quality Used Heavy-Duty Automatic Transmission

Looking for a quality used Ford E4OD transmission or its 4R100 successor? Check out our used E4OD and 4R100 transmissions , they give excellent performance and durability without the expense of new ones. Built for Ford F-Series Super Duty trucks and E-Series vans, these rugged heavy-duty automatic transmissions are designed to stand up to heavy loads and tough conditions. This Ford E4OD transmission for sale here (or its 4R100 successor) provides the torque management and durability required to keep your Ford running at its best whether you’re at tough job sites or doing heavy hauling. Give your drivetrain the upgrade it needs with our trusted E4OD or 4R100 option.

The Ford E4OD Transmission: A Brief Overview

The Ford E4OD (Electronic 4-Speed Overdrive) transmission is a heavy-duty 4-speed automatic transmission produced from 1989 to 1997. It was designed for Ford F-Series trucks and E-Series vans, replacing the venerable C6 transmission in most installations. The E4OD has four forward gears with overdrive (4th gear) for improved fuel economy at highway speeds. Being a heavy-duty gearbox, it boasts high torque capacity for towing and hauling. Electronic controls were added to the transmission for smoother shifting and tighter integration with the engine management systems. The E4OD is robust and reliable; this E4OD transmission for sale here finds its use not only in work applications but in a huge number of recreational vehicles. Its evolution continued with the 4R100 in 1998, raising the already successful design to a higher level.

### The Ford 4R100 Transmission: The E4OD Successor (1998-2004)

The Ford 4R100 transmission is the evolutionary successor to the E4OD, produced from 1998 to 2004. Same basic architecture as the E4OD with key upgrades:

• Stronger planetary gear sets for higher torque capacity

• Upgraded clutch packs with more friction surface area

• Improved hydraulic control system with revised valve body

• Updated electronic controls with PCM (Powertrain Control Module) management

• Increased torque capacity: approximately 1,000 lb-ft (vs approximately 700 lb-ft for E4OD)

The 4R100 designation explained: “4” speeds, “R” for rear-wheel drive, “100” for 1,000 lb-ft torque capacity rating.

The 4R100 was specifically developed to handle the higher torque output of:

• 7.3L Power Stroke diesel (525 lb-ft factory rating, much higher with tuning)

• 6.8L Triton V10 (425 lb-ft)

• 5.4L Triton V8 (later applications)

### E4OD vs 4R100 Comparison

### Is the 4R100 a Good Transmission?

Yes, the 4R100 is widely considered one of Ford‘s best heavy-duty automatic transmissions. Particularly when mated to the 7.3L Power Stroke diesel, the 4R100 is regarded as durable and reliable. Common reasons the 4R100 is well-regarded:

• Heavy-duty design: 1,000 lb-ft torque capacity is substantial

• Proven reliability: Many 4R100s in 7.3 Power Stroke applications regularly exceed 300,000 miles with proper service

• Strong aftermarket support: Extensive rebuild and performance upgrade options available

• Simplicity compared to later transmissions: 4-speed design is simpler than later 5-speed (5R110W) and 6-speed (6R140) TorqShift units

• Diesel performance compatibility: The 4R100 handles tuned 7.3 Power Stroke power levels well with rebuild upgrades

Common 4R100 service items (honest disclosure): Torque converter clutch issues at high mileage, valve body wear (common high-mileage service item), and some applications develop reverse drum cracks under extreme abuse. These are addressable through proper rebuild procedures.

### Ford E4OD / 4R100 Applications

Ford F-Series Truck Applications:

Other Ford / Lincoln Applications:

Key Engineering Features of the E4OD / 4R100

• 4-Speed Automatic with Overdrive: Gears 1st (2.71:1), 2nd (1.54:1), 3rd (1.00:1 direct), 4th (0.71:1 overdrive), Reverse (2.18:1)

• Electronic Control: First Ford heavy-duty automatic with electronic shift solenoids (replacing the hydraulic-only C6)

• Torque Converter Lockup: Reduces slippage and heat at highway speeds

• Heavy-Duty Construction: Cast iron case, aluminum bell housing

• External Cooling: Heavy-duty applications use auxiliary transmission coolers

• Bell Housing Variants: Different bell housing patterns for V8 vs V10 vs 7.3 Power Stroke applications

• PCM Integration (4R100): Tighter integration with engine management for diesel applications

Common E4OD / 4R100 Service Items (Honest Disclosure)

Honest disclosure of known service items:

• Torque Converter Clutch: Most common high-mileage failure. Symptoms: shudder during lockup, slipping in 4th gear.

• Valve Body Wear: Common at 150,000+ miles. Symptoms: harsh shifts, delayed engagement, slipping.

• Reverse Drum Cracks: Can occur in high-stress applications (heavy towing, aggressive driving). Aftermarket billet replacements address this.

• Shift Solenoids: Electronic solenoids can fail at high mileage. Symptoms: stuck in gear, harsh shifts, no shift.

• Transmission Cooler Failure (E4OD only on F-Series radiators): Internal cooler in radiator can fail allowing coolant into transmission. Major repair required if not caught early.

• Output Shaft Seal Leaks: Common service item.

• Pan Gasket Leaks: Pan gasket should be replaced during service.

The E4OD and 4R100 are durable when maintained per Ford specifications. Service interval: fluid and filter every 30,000-50,000 miles, more frequent for heavy towing or 7.3 Power Stroke applications.

Why Choose a Used Ford E4OD or 4R100 Transmission?

• Cost savings vs reman ($999 used vs $1,800-$3,500 reman plus core)

• Variant matching , we identify whether you need E4OD or 4R100

• Direct OEM fit for F-Series, E-Series, Excursion applications

• Heavy-duty capability , 600-1,000 lb-ft torque capacity depending on variant

• Strong aftermarket , extensive rebuild parts and performance upgrades available

• Diesel compatibility , 4R100 widely used with 7.3 Power Stroke

Here, you’ll find this Ford E4OD transmission for sale (or 4R100 variant) at the most reasonable price possible, with full functional testing across all 4 forward gears, reverse, and overdrive lockup.

FAQs

What is the Ford E4OD transmission?
