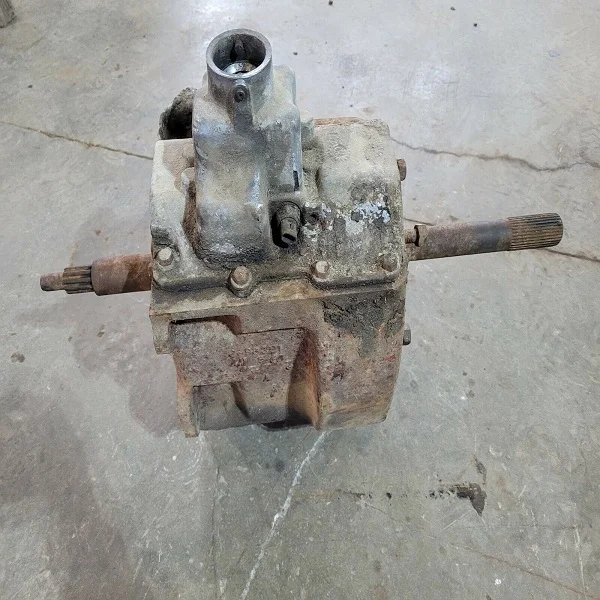

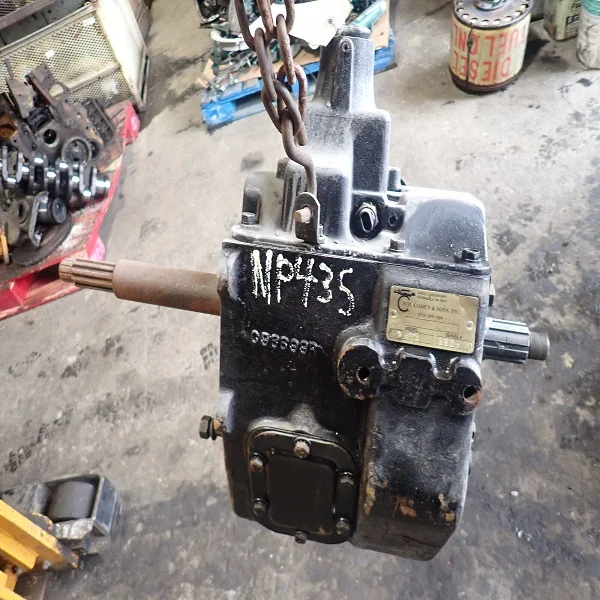

About the NP435 Transmission for Sale

The NP435 manual transmission was manufactured by New Process Gear (a Chrysler division) starting in 1966 and remained in production through 1992. Found frequently in military vehicles and light- and medium-duty trucks, this NP435 Transmission for sale is a superb heavy-duty truck gearbox that may be found in 1/2, 3/4, and 1-ton trucks. The transmission derives its name by denoting the company as “NP” (New Process), while its series number is indicated by “435”. It is a popular choice in many scenarios because of its strength, compact size, and the legendary low first-gear ratio that earned it the nickname “granny low“ or “creeper gear.“

What makes the NP435 special is its 6.68:1 first gear, an extremely low ratio designed for very slow, very heavy hauling and rock-crawling. This low first gear means a truck equipped with an NP435 can crawl up steep grades, pull stumps, drag heavy loads at walking speed, and operate in conditions where modern automatic transmissions and overdrive manuals would slip the clutch or stall.

Application of the NP435 Transmission

• Ford F-Series Trucks (1966 to 1992): The NP435 was the standard heavy-duty manual transmission option in Ford F-100, F-150, F-250, and F-350 trucks for over two decades. Used with both gasoline V8 (302, 351, 360, 390, 460) and inline-6 (240, 300) engines.

• Dodge Ram and W-Series Trucks: Dodge’s heavy-duty trucks used the NP435 in 4WD configurations. Common in W100, W150, W200, W250 trucks and 4WD Power Wagons.

• Chevy / GM Light-Duty Trucks: Limited GM use, primarily in specific 3/4 and 1-ton applications.

• International Harvester (IH): IH adopted the NP435 in their light- and medium-duty truck lineup including the Loadstar and S-Series.

• Military M-Series Vehicles: The NP435 was used in select military M-series trucks where heavy-duty 4-speed manual was specified.

• Industrial Applications: Construction, forestry, oil rig operations, and industrial vehicles where durability and high torque capacity were required.

• Jeep Conversions and Off-Road Builds: Although not originally designed for Jeeps, the NP435’s compact size and 6.68:1 first gear make it a popular candidate for Jeep CJ, YJ, TJ, and other off-road conversions. Pairs well with Dana 18, Dana 20, Dana 300, and NP205 transfer cases.

Engine Compatibility

The NP435 has been paired with a wide variety of engines through its production run, including:

• V8 Gasoline Engines: Ford 302 (5.0L), Ford 351 Windsor / Cleveland (5.8L), Ford 360, Ford 390, Ford 460 (7.5L), Chevy 350 (5.7L), Dodge 318 (5.2L), Dodge 360, Dodge 440

• Inline-6 Gasoline Engines: Ford 240, Ford 300 (4.9L), Chevy 250 (4.1L), Chevy 292

• Diesel Engines: International DT-466 (in IH applications), Ford 6.9L IDI, Ford 7.3L IDI, Dodge 6BT 5.9L Cummins (with adapter)

• V6 Gasoline Engines: Various V6 applications in light-duty truck variants

Key Features of the NP435 Transmission

• Durability: The primary strength of the NP435 is durability. Cast iron case construction with rugged internal components handles strenuous operations such as towing, construction site use, off-road operation, and military service.

• 6.68:1 Granny Low First Gear: The defining NP435 feature. This extreme low gear ratio enables walking-speed crawling under load, exceptional starting torque multiplication, and rock-crawling capability. No other comparable American 4-speed has a lower first gear.

• Ruggedness: The build quality absorbs the high power and torque of V8 and diesel engines without complaint. Best option for vehicles that need sturdy transmissions for demanding applications.

• Manual Control: The NP435 offers direct driver control in challenging situations, off-road driving, steep hilly areas, and heavy hauling where gear selection precision matters.

• Simple Design: Mechanical-only construction with no electronics. Maintenance is simpler and cheaper than modern automatics. Repairs can be done by any competent transmission shop or knowledgeable owner.

• Versatility: Compatible with practically any engine, gasoline V8 / V6 / Inline-6 / Inline-4, diesel, with appropriate bellhousing. The transmission can be adapted across numerous applications and chassis designs.

• Off-Road Capabilities: Outstanding off-road and crawling capability thanks to the 6.68:1 first gear. Provides power and grip needed for off-road maneuvering, traversing steep grades, and overcoming difficult obstacles.

• Top-Loaded Design: The shift mechanism mounts on top of the case (top-shifting style), making service and shifter replacement straightforward.

Bellhousing Pattern Identification

This is the single most important compatibility consideration when buying an NP435. The transmission was built with multiple bellhousing patterns to fit different OEM engines:

• Ford pattern: Used with Ford engines (302, 351, 360, 390, 460, 240, 300). 5-bolt or 6-bolt patterns depending on year.

• Dodge / Mopar pattern: Used with Dodge engines (318, 360, 440). 4-bolt pattern.

• GM / Chevy pattern: Used with Chevy engines (350, 292). 4-bolt pattern.

• International / IH pattern: Used with IH gasoline and diesel engines. Specific bolt pattern.

We confirm bellhousing pattern on every NP435 before shipping. Tell us your engine make and model and we’ll match the correct unit.

Signs You Need a Replacement NP435

• Grinding gears even with proper synchro engagement (worn synchros)

• Pops out of gear (worn shift detents or output shaft)

• Hard shifting that doesn’t improve with fresh GL-4 gear oil

• Whining or growling at speed (worn bearings)

• Loss of any forward gear (sheared gear teeth or shift fork failure)

• Clutch operates fine but transmission won’t transmit power (broken input shaft)

• Cracked case (often from heavy abuse or impact)

• Vintage Ford / Dodge / Chevy / IH truck restoration project

• Off-road / rock crawler build needing the 6.68:1 first gear

Known NP435 Issues We Inspect Before Shipping

• Synchro wear: 2nd, 3rd, and 4th gear synchros wear with mileage. We inspect synchro condition and shift feel.

• Bearing wear: Front and rear bearings can develop runout at high mileage. Listened for during inspection.

• Top cover gasket leaks: Common on aged units. Disclosed before shipping.

• Shift fork wear: Inspected during top cover examination.

• Bellhousing bolt pattern: Confirmed before every shipment to match buyer’s engine.

• Input shaft length and spline count: Confirmed (10 spline, 1-1/16″ standard, but length can vary).

• Output shaft spline count: Confirmed (31 spline, 1-3/8″ standard).

• Case crack inspection: Critical for heavy-duty applications.

What Is Included, What Is Not Included

NP435 Myth Busters

• Myth: The NP435 transmission is exclusively designed for heavy-duty trucks.

• Reality: While built rugged for heavy-duty applications, the NP435 is also commonly used in lighter-duty trucks and off-road vehicles. Its compact size makes it adaptable to many chassis.

• Myth: The NP435 is an outdated transmission model that is unreliable by modern standards.

• Reality: The NP435 is renowned for its sturdiness and dependability. Its simple, strong design makes it extremely durable and capable of handling large amounts of torque, which is why it remains popular among enthusiasts, off-roaders, and vintage truck restorers.

• Myth: Shifting the NP435 transmission is complex and not user-friendly.

• Reality: While the NP435 may not shift as smoothly as modern transmissions (especially without 1st gear synchro), it is built to last and perform. Proper maintenance, GL-4 gear oil, and learning the shift technique considerably improve shifting performance.

• Myth: The NP435 first gear is unusable for normal driving.

• Reality: The 6.68:1 first gear is so low that most drivers start in 2nd gear (3.34:1) for normal driving on flat surfaces. First gear is reserved for heavy hauling, off-road crawling, and starting on steep grades. This is by design and is exactly what makes the NP435 valuable.
