5.3 Vortec Engine for Sale | Chevy 5.3L V8 (325 cu in)

$2,800.00

Product Overview & Specifications

In Stock, Multiple Generations and RPOs Available
Free Shipping to All 50 States via Crated Freight, 5 to 10 Business Days
All 8 Cylinders Compression Tested, Results Available Before You Pay
Generation and RPO Code Confirmed Before Shipping
AFM Lifter Inspection on Gen IV and Gen V Units
Timing Chain Stretch Checked
High Pressure Fuel Pump Inspected on Direct Injection L83 Units
100% Fitment Verified Before Every Order Ships
No Core Charge, Keep Your Old Engine
15 Day Replacement Warranty on Internal Defects

100% Fitment Assistance

15 Days Replacement Warranty

Free & Fast Shipping

Category: Engine

Description
Reviews (0)

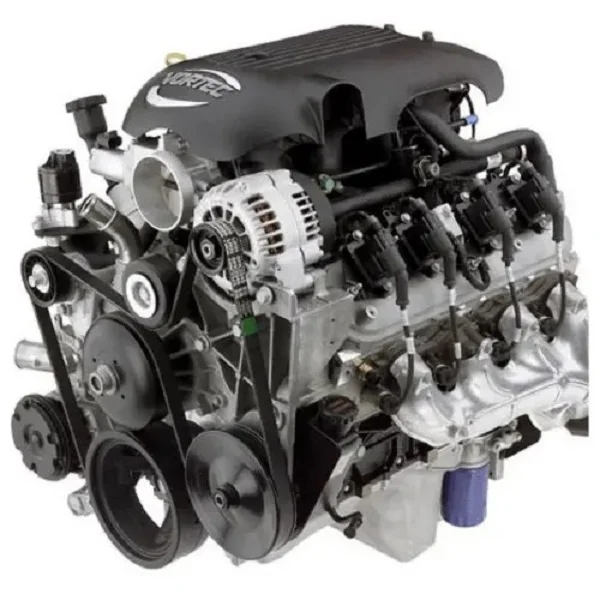

About This Engine

The 5.3 Vortec is the most widely produced V8 engine in GM history. From 1999 through 2020 and beyond, it powered every full-size Chevy and GMC truck and SUV: Silverado 1500, Sierra 1500, Tahoe, Suburban, Yukon, Yukon XL, Avalanche, and the discontinued Hummer H2 and Cadillac Escalade. The 5.3 Vortec spans three distinct GM small block generations, sharing the same 96 mm bore and 92 mm stroke for 325 cubic inches of displacement, but differing significantly in fuel system, valve train, and electronic engine management between generations.

Three Generations You Need to Know Before Ordering

Generation III (1999 to 2007): Includes RPO codes LM7 (iron block, 270 to 295 hp), L59 (flex fuel iron block), LM4 (aluminum block, GMT800 SUVs), and L33 (high-output aluminum block). Port fuel injection, no VVT, no AFM. The “iron block 5.3” most owners think of when they hear “5.3 Vortec.”

Generation IV (2007 to 2014): Includes LH6, LMG, LC9, LH8, LMF, LY5. Adds Variable Valve Timing and Active Fuel Management (cylinder deactivation). Block material varies by RPO (aluminum on LH6, LC9, LMG; iron on LY5, LMF).

Generation V (2014 onward): L83 EcoTec3. Direct injection, VVT, AFM, all-aluminum block. 355 hp, the most power-dense factory 5.3 ever produced.

Why GM Truck Owners Choose a Used 5.3 Vortec

Cores are abundant because GM built the 5.3 in massive volume for over two decades. A clean used unit costs less than half of a remanufactured long block while delivering excellent service life when properly inspected for the known wear points of the specific generation.

Signs You Need a Replacement 5.3 Vortec

AFM lifter collapse on Gen IV and Gen V units, the highest-impact wear mode

Knock or rattle under load, rod or main bearing wear on high-mileage units

Excessive oil consumption (a known Gen IV issue past 100,000 miles)

Loss of compression on one or more cylinders, head gasket or ring wear

Timing chain rattle on cold start, timing chain stretch

Coolant in oil, head gasket or oil cooler failure

Misfire codes that follow specific cylinders, lifter or valvetrain wear

Known 5.3 Vortec Issues We Inspect Before Shipping

AFM lifter condition (Gen IV and Gen V), the most-discussed 5.3 wear point

Oil consumption history (well-documented Gen IV concern)

Timing chain stretch, inspected and reported

High pressure fuel pump on L83 direct injection

Compression on all 8 cylinders, the leading indicator of overall condition

Generation and RPO photographed, including head and block casting numbers

Donor application and mileage documented where available

engine-family	GM Small Block Gen III / IV / V
configuration	16 valves, V8 OHV
displacement	5.3L (325 cu in)
bore-x-stroke	96.0 mm x 92.0 mm
compression-ratio	9.5:1 to 11.0:1 by generation
aspiration	Naturally Aspirated
generations	III (LM7, IV (LH6, L33), L59, LC9, LH8, LM4, LMF, LMG, LY5), V (L83 EcoTec3)
fuel-system	Port FI (Gen III/IV) or Direct Injection (Gen V L83)
fuel-type	Regular Unleaded
variable-valve-timing	No (Gen III), Yes (Gen IV onward)
active-fuel-management	Gen V L83), No (Gen III), Yes (Gen IV LH6 onward
block-material	Aluminum or Iron by RPO
head-material	Aluminum
firing-order	1-8-7-2-6-5-4-3
production-years	1999 to 2020+
horsepower	270 to 360 hp by generation
torque	315 to 383 lb-ft by generation
compatible-transmissions	4L60E, 4L65E, 4L70E, 6L80, 6L90, 8L90

FAQs

What is the difference between Gen III, Gen IV, and Gen V 5.3 Vortec?

Gen III (1999 to 2007) has port fuel injection, no VVT, no AFM, and includes RPO codes LM7, L59, LM4, L33. Gen IV (2007 to 2014) adds VVT and AFM, with RPOs LH6, LMG, LC9, LH8, LMF, LY5. Gen V (2014 onward) is the L83 EcoTec3 with direct injection, VVT, and AFM. All three are 5.3 liters but they are not interchangeable across generations.

What is Active Fuel Management and is it a problem?

AFM (Active Fuel Management) is GM’s cylinder deactivation system that shuts off four cylinders under light load to save fuel. AFM lifters are a known wear point on Gen IV and Gen V engines. We inspect AFM lifter condition on every applicable unit and document findings.

Should I disable AFM after install?

Many 5.3 Vortec owners install an AFM disabler module or have the ECU tuned to disable cylinder deactivation, which extends lifter life. This is your decision and we provide the engine in factory configuration. Either approach is valid.

How can I tell which generation 5.3 I need?

The RPO code on your underhood emissions label identifies the specific engine. Tell us the RPO and we ship the matching unit. Without the RPO, your year, make, model, and trim usually narrow it down within one generation.

Is the iron block 5.3 (LM7) more durable than the aluminum block?

Both are durable when properly maintained. The iron block LM7 is heavier and more tolerant of overheating events. Aluminum block 5.3s respond better to cooling system maintenance discipline. For high-mileage truck applications, the iron block has a slight edge.

What transmission pairs with the 5.3 Vortec?

4L60E, 4L65E, and 4L70E (Gen III and early Gen IV applications). 6L80 and 6L90 (later Gen IV and Gen V). 8L90 (later Gen V). Tell us your transmission for compatibility check.
