About This Transmission

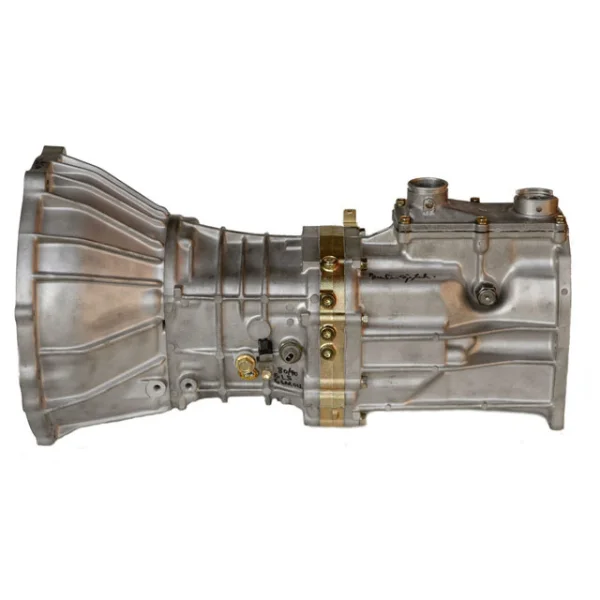

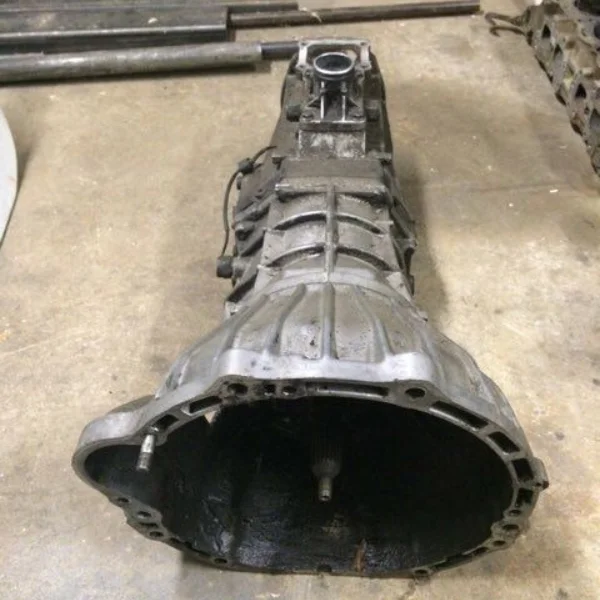

The Toyota W56 is a 5-speed fully synchronized manual transmission built by Aisin Seiki and used in the Toyota Hilux Pickup (sold as the Toyota Pickup in North America) and Toyota 4Runner from 1985 through 1995. It is a member of Toyota’s W-series transmission family, all-aluminum case units that share basic architecture across the W-series lineup.

The W56 is distinguished from the W55 passenger car transmission by its lower 1st and 2nd gear ratios designed to give a loaded truck more pulling power from a stop. The 4WD variant uses an even lower 1st gear ratio (3.954:1) than the 2WD variant (3.285:1) to support the heavier 4WD drivetrain and off-road duty cycles.

The W56 has a devoted following in the Toyota truck and 4WD community for its durability, simplicity, and ease of service. Clean used W56 units are increasingly sought after as the 1985 to 1995 Pickup and 4Runner population ages, making a gear-tested, variant-documented unit a significant find for any restoration or repair project.

Toyota W56 Gear Ratios (The Top GSC Question)

The W56 has six distinct gear ratio sets depending on 2WD vs 4WD configuration:

The 4WD W56 uses lower (numerically higher) 1st and 2nd gear ratios to handle the extra weight and lower-speed off-road duty cycles. The 2WD W56 uses slightly higher (numerically lower) 1st and 2nd ratios for better highway driveability and fuel economy in unloaded street driving. 4th gear is direct (1.000:1) and 5th gear is overdrive (0.850:1) on both configurations.

Signs You Need a Replacement Transmission

• Grinding shifting into 1st or 2nd gear: Synchronizer wear on the two most-used gear transitions

• Transmission pops out of 5th gear under light throttle: Worn 5th gear detent or synchronizer ring

• Difficulty selecting reverse: Reverse synchronizer or shift rail wear

• Oil leaks at the front seal or tail housing: Aged seal deterioration common on 30-year-old transmissions

• Whining noise at highway speeds that increases with vehicle speed: 5th gear or output bearing wear

• Slipping out of 4WD range (4WD versions): Transfer case issue, not transmission internal, but confirm before diagnosing W56

Known Problems With This Transmission

• 2WD vs 4WD case incompatibility: The 2WD and 4WD versions use completely different rear cases. Installing a 4WD W56 in a 2WD application requires significant modification, and vice versa. We confirm this configuration before every order, the most common W56 sourcing error.

• Marlin generation differences: Some internal components (particularly synchronizer assemblies and shift forks) differ between W56 generations. For a rebuild using original specifications, knowing the generation matters. We identify the generation where determinable from the unit.

• 5th gear synchronizer wear: The 5th gear synchronizer is the most common W56 wear point. Trucks that have done extensive highway mileage at sustained 55 to 75 mph frequently show wear here before lower gears show any problems. We specifically test 5th gear engagement before shipping.

• Fluid compatibility: Toyota recommends specific fluids for the W56. Using incorrect gear oil can damage the synchronizers. We note fluid type requirements on every order.

• External shift linkage wear: The shift lever connection on aged W56 units can develop slop causing imprecise gear selection. We inspect external linkage components before shipping.

FAQs

What are the Toyota W56 gear ratios?
