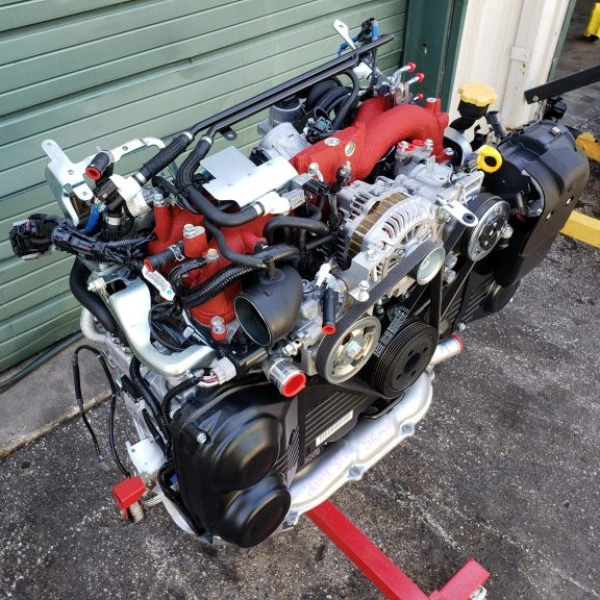

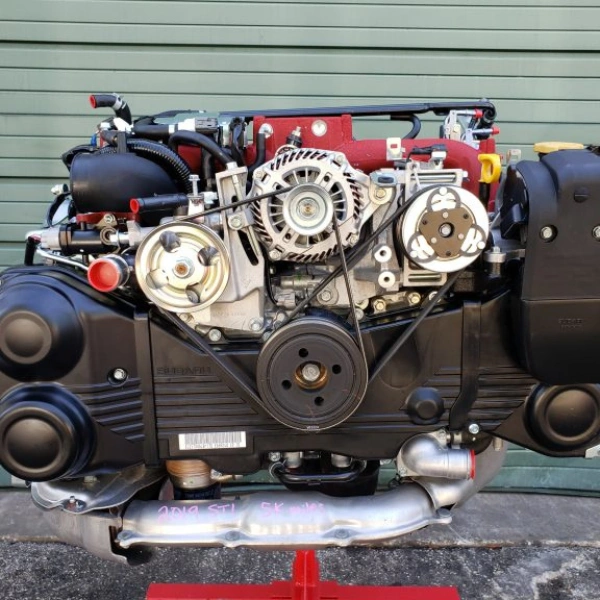

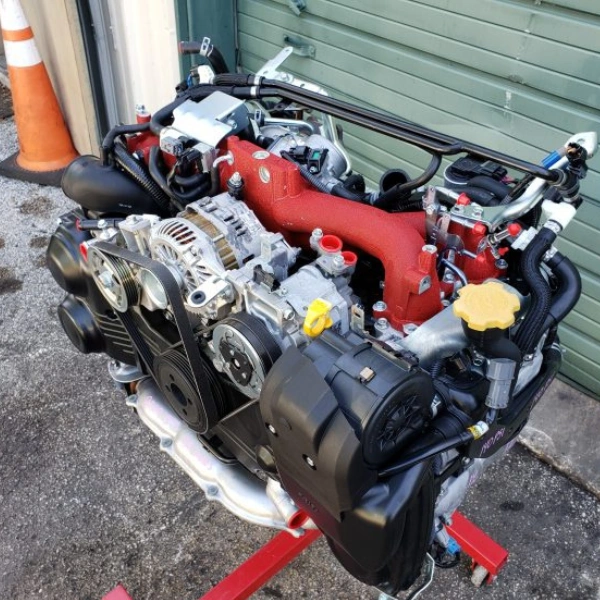

SUBARU EJ257 ENGINE FOR SALE

Subaru EJ257 Engine for Sale, High-Performance Power for Your WRX STI

Subaru’s EJ257 engine is the heart and soul of the iconic WRX STI, delivering an exhilarating performance that puts driving enthusiasts on the edge of their seats. This turbocharged 2.5-liter boxer engine is well known to pack a full wallop in terms of power and deliver exceptional tuning potential.

The EJ257 came from the Subaru rally heritage, combining high-strength internals with advanced engineering to provide substantial boost pressures. A semi-closed deck design (on 2008+ STI variants) and forged connecting rods provide a great base for both stock and modified applications.

Known for being responsive and creating that unique boxer rumble, the Subaru EJ257 engine for sale here really lets you know it’s time to get that blood pumping. Whether looking for a replacement motor or piecing together a high-performance build, this powerplant melds the perfect mixture of reliability with untapped potential to send your Subaru performance into the stratosphere.

Engine Overview: Subaru EJ257

The Subaru EJ257 is a turbocharged 2.5-liter flat-four, featuring a horizontally opposed “boxer” design. It features an aluminum block and heads with reinforced internals to handle high boost pressures. Additionally, it features a Dual Active Valve Control System, which allows for optimized valve timing on both the intake and exhaust banks for more power availability across the rev range.

Key features include a high-flow IHI VF48 turbocharger, top-mount intercooler, and multi-port fuel injection with larger STI-spec injectors. In stock trim, this Subaru EJ257 engine for sale here typically produces 300-305 horsepower and 290 lb-ft of torque.

Important: Stock EJ257 vs Cosworth EJ257

This listing is for the stock factory Subaru EJ257 STI engine , not the Cosworth EJ257 performance build. The difference is significant:

The stock factory EJ257 is excellent for replacement applications and builds up to about 450 HP. For serious 500+ HP builds, the Cosworth EJ257 is the recommended starting point.

EJ257 vs EJ255: The STI Performance Advantage

The EJ257 takes the EJ255 mainstream turbo and applies STI-spec upgrades:

Forged Connecting Rods (Critical Upgrade)

The single most important EJ257 differentiator:

EJ255 (cast rods): Safe power ceiling ~350 HP, rods become limiting factor above this

EJ257 (forged H-beam rods): Safe power ceiling ~400-450 HP, forged rods support significantly higher loads

Cost to upgrade EJ255 to forged rods: $1,500-2,500 in parts plus labor , makes the EJ257 a better value for performance builds

Semi-Closed Deck Block (2008+ STI)

Major engineering improvement on later EJ257 variants:

2004-2007 GD chassis EJ257: Open-deck block (same as EJ255)

2008-2021 GR/GV/VA chassis EJ257: Semi-closed deck block (reinforced cylinder support, much stronger under boost)

Cosworth EJ257: Full closed-deck block (the ultimate strength upgrade)

More Aggressive Cam Profiles

EJ257 cams: Higher lift, longer duration, optimized for STI power band

EJ255 cams: Milder profile for daily driving smoothness

STI-Specific Supporting Components

Larger fuel injectors: ~565 cc on STI vs ~440 cc on WRX

Larger fuel pump: STI capacity for higher horsepower

Different turbocharger: VF48 typical STI vs VF52 typical WRX (different boost characteristics)

STI ECU tune: More aggressive boost and timing targets

Vehicle Applications (Direct Fit)

Key Engineering Features

Flat-4 Horizontally Opposed Boxer Configuration: Subaru signature architecture

DOHC Per Bank: Dual overhead camshafts, 16 valves total

Dual AVCS Variable Valve Timing: AVCS on BOTH intake AND exhaust camshafts , a Subaru engineering hallmark

IHI VF48 Turbocharger: Quality Japanese turbocharger, water-cooled bearing housing, designed for STI boost levels

Top-Mount Intercooler (TMIC): With optional water spray on some STI variants

Forged Connecting Rods: Factory STI-spec H-beam forged rods (the key EJ255 vs EJ257 differentiator)

Semi-Closed Deck Aluminum Block (2008+): Significantly stronger than open-deck design

Larger STI-Spec Injectors and Fuel System: Supporting 305 HP output

Premium Fuel Required: 91 octane minimum, 93 octane recommended

Common EJ257 Service Items (Honest Disclosure)

Ringland Failures (Most Critical Service Item)

Same documented issue as EJ255 , cast pistons can develop ringland failures under high boost or detonation:

Risk threshold: Above 22-25 PSI boost or with poor tuning

Symptoms: Loss of power, oil consumption, low compression on affected cylinder

Prevention: Premium fuel always (93 octane), proper tuning, conservative boost on stock pistons

For serious builds: Forged pistons mandatory above ~400 HP (the EJ257 forged rods handle the load but cast pistons remain limiting)

Connecting Rod Bearing Wear

Despite the forged rods, rod bearing wear is documented at very high mileage (150,000+ miles). Less common than EJ255 cast rod failures, but service item worth verifying.

Head Gasket Failures

Early EJ257 (2004-2007 GD open-deck): More susceptible to head gasket failures

Later EJ257 (2008+ semi-closed deck): Significantly improved head gasket reliability

MLS gaskets: Recommended at any installation for high-mileage engines

AVCS Solenoid Failures

At 80,000-120,000 miles, AVCS solenoids on intake or exhaust can develop failures producing check engine codes and reduced upper-RPM power. Both intake and exhaust solenoids documented. Service: replace AVCS solenoid ($200-300 part each).

VF48 Turbocharger Service Items

Oil seal leaks: Producing blue smoke

Bearing wear: Producing turbo whine

Shaft play: Indicates imminent failure

Service interval: Often turbo rebuild or replacement at 100,000-150,000 miles

Banjo Bolt Screen Blockage

Common cause of turbo oil starvation on EJ-series turbos. Should be inspected at any service interval. Failure causes catastrophic turbocharger failure.

Spark Plug Service

30,000 mile interval recommended for STI applications (more frequent than WRX). NGK iridium plugs required.

Why Choose a Used Subaru EJ257 Engine?

Cost savings vs reman ($5,499 used vs $6,500-9,500 reman plus core)

Direct OEM fit for all WRX STI generations 2004-2021

STI-spec forged connecting rods , significant upgrade over EJ255 cast rods

Semi-closed deck block on 2008+ variants , major improvement over EJ255

AWD compatibility , direct mate for Subaru’s symmetrical AWD with DCCD

Strong aftermarket , extensive STI-specific performance parts catalog

Tuning potential , 400-450 HP achievable on stock internals

STI heritage , the engine that defines Subaru’s performance legacy

For serious 500+ HP builds, consider the Cosworth EJ257 (closed-deck block, full Cosworth forged internals) , see separate listing.

Here, you’ll find this Subaru EJ257 engine for sale at the most reasonable price possible, with variant verified (stock factory EJ257 STI, not Cosworth build), donor vehicle confirmed (WRX STI chassis generation identified), all 4 cylinders compression tested, turbocharger condition verified, AVCS function tested on both intake AND exhaust (Dual AVCS), forged connecting rods verified, block deck type identified, and complete inspection.

FAQs

What is the Subaru EJ257?
