Ford 6.8 V10 Engine for Sale | Triton 6.8L Modular V10 (415 cu in) | Direct Fit Super Duty, Excursion, E-Series, Motorhome

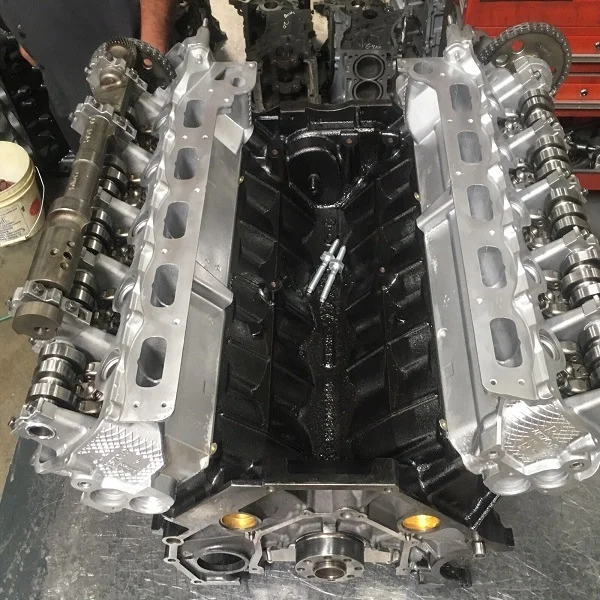

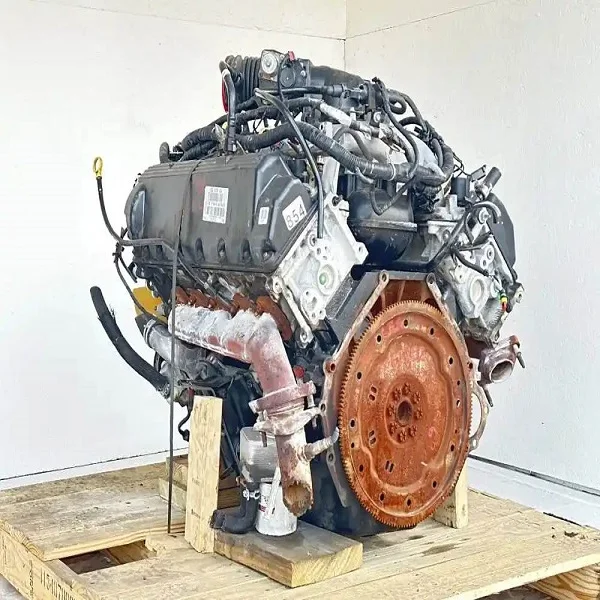

Used Ford 6.8 V10 Engine for Sale

The Ford 6.8L Triton V10 engine can end your hunt for a powerful, durable engine for your Super Duty truck, Excursion, E-Series cutaway, or motorhome. With proven dependability and Ford Modular family engineering, this Ford 6.8 V10 Engine for Sale provides a cost-effective solution for those needing a dependable engine upgrade or replacement.

The Ford Modular V10 Architecture

The 6.8L V10 is part of the Ford Modular Engine Family, sharing architectural DNA with the 4.6L and 5.4L Triton V8s. By extending the Modular V8 design to 10 cylinders, Ford created a heavy-duty gasoline engine with excellent torque output for towing, hauling, and motorhome propulsion. The shared architecture means parts availability, service knowledge, and Modular family expertise all transfer directly to the 6.8L V10.

Key Features of the Ford V10 6.8 Engine

• Displacement: The engine has a displacement of 6.8 liters (415 cubic inches), providing the foundation for serious heavy-duty performance.

• Cylinder Configuration: It is a V10 engine, meaning it has 10 cylinders arranged in two banks of five cylinders each, set at a 90-degree angle. The crankshaft uses a split-pin design to balance the unconventional V10 firing order.

• Valvetrain: The engine uses a single overhead camshaft (SOHC) design. Early variants (1997-2004) feature 2 valves per cylinder; later variants (2005-2010) feature 3 valves per cylinder with Variable Cam Timing (VCT) for improved breathing and power.

• Fuel System: Features electronic sequential multi-port fuel injection (SFI / MPI), ensuring precise fuel delivery for optimal performance and efficiency.

• Power Output: Power output varies by variant: the 2-valve SOHC produces 305 hp and 420 lb-ft, while the 3-valve SOHC produces 362 hp and 457 to 460 lb-ft.

• Durability: Known for its durability and reliability, which are essential for vehicles intended for heavy towing, hauling, and motorhome service. Properly maintained 6.8L V10 engines routinely log 200,000+ miles.

• Transmission: Typically paired with heavy-duty Ford automatic transmissions: 4R100 (1997-2004), 5R110W TorqShift (2005-2010), 6R140 TorqShift (later motorhome applications).

• Maintenance: Requires regular maintenance intervals, including oil changes, spark plug replacements, and other routine checks, to ensure longevity and performance.

6.8L V10 Engine Variants

We offer a diverse range of used Ford V10 6.8 engines:

Applications of the Ford V10 6.8 Engine

Our used Ford V10 engines are perfect for:

• Ford F-Series Super Duty Trucks, F-250, F-350, F-450, F-550 (1997 to 2010)

• Ford Excursion SUV (1999 to 2005, the largest SUV Ford ever produced)

• Ford E-Series Cutaway and Stripped Chassis, E-350, E-450 (1997 to 2014, used for shuttle buses, ambulances, RVs, and commercial conversions)

• Ford F-650 and F-750 Medium-Duty Trucks (1998 to 2010)

• Class A Motorhomes built on the Ford F-53 Stripped Chassis (extensive use across Fleetwood, Winnebago, Newmar, National, Tiffin, and dozens of other RV manufacturers)

• Class C Motorhomes built on the Ford E-450 Cutaway Chassis (Forest River, Coachmen, Jayco, and many other RV manufacturers)

The Ford V10 6.8 engine is engineered for longevity. With regular care and maintenance, these engines can surpass 200,000 miles. Post-2005 models with the 3-valve SOHC design and VCT are particularly noted for their reliability and improved power.

Signs You Need a Replacement 6.8 V10

• Spark plug threads stripping in cylinder head (a documented Ford Modular family concern, especially severe on early 2-valve heads with limited thread engagement)

• 3-valve spark plug breakage (specific 2005-2010 concern with the original two-piece SP-509 plugs)

• Loss of compression on one or more cylinders

• Timing chain rattle on cold start (high-mileage 6.8 wear point)

• Cam phaser noise on 3-valve VCT variants

• Coolant loss or white smoke (potential cylinder head crack)

• Excessive oil consumption past piston rings

• Donor Super Duty, Excursion, E-Series, or motorhome has been totaled

Known 6.8 V10 Issues We Inspect Before Shipping

Spark plug thread stripping (2-valve, 1997-2004): The early 2-valve cylinder heads have only a few threads engaging the spark plug, and over-tightening or thermal cycling can strip the aluminum threads. Heli-Coil or Time-Sert thread repair is the standard fix. We inspect spark plug holes during prep where accessible.

3-valve spark plug breakage (2005-2010): The original Motorcraft SP-509 / SP-515 two-piece spark plugs can break off in the cylinder head during plug change, leaving the lower portion stuck. Ford eventually transitioned to single-piece SP-546 plugs which fix this issue. When servicing 3-valve 6.8L V10s, always use the updated single-piece plugs and apply nickel anti-seize. If you encounter a stuck plug, do not force it; the Lisle 65600 extractor kit is the correct removal tool.

Timing chain stretch: A common high-mileage 6.8L wear point. We inspect timing chain condition and disclose findings.

Cam phaser noise (3-valve VCT): The Variable Cam Timing phasers on 3-valve engines can develop wear causing cold-start rattle. We test cam phaser operation where applicable.
