Ford 312 Y-Block Engine for Sale | Used OEM V8 (1956 to 1960)

About This Engine

The Ford 312 Y-Block is the largest displacement member of the Ford Y-Block V8 family, produced from 1956 through 1960. The Y-Block name comes from the engine’s distinctive deep-skirted block casting that extends well below the crankshaft centerline, forming a Y cross-section. This design makes the bottom end exceptionally rigid and strong but also creates the Y-Block’s most well-known service characteristic: the oil pan cannot be removed in most applications without pulling the engine.

The 312 used a unique top-oiling valvetrain system where engine oil is fed through hollow pushrods to the rocker arms, then flows down the valve stems to lubricate the guides. This system requires specific attention to oil viscosity and valve stem-to-guide clearances- issues that are frequently neglected on aged Y-Block engines. A properly maintained 312 is a strong, smooth engine. One that has been run with incorrect oil or worn valve guides will show its age quickly.

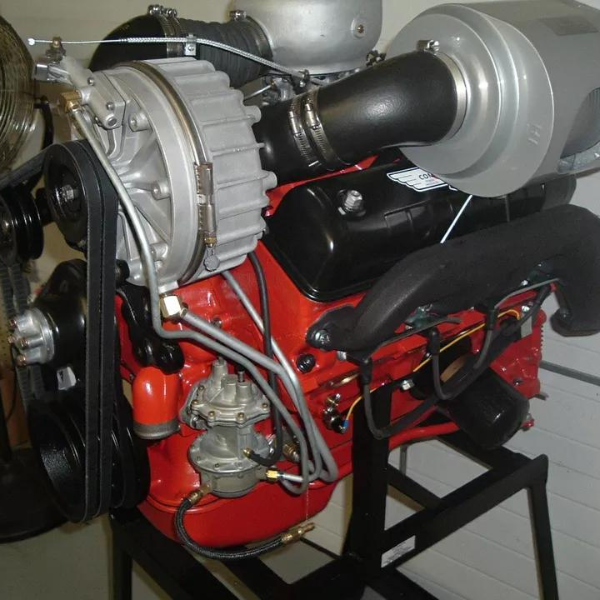

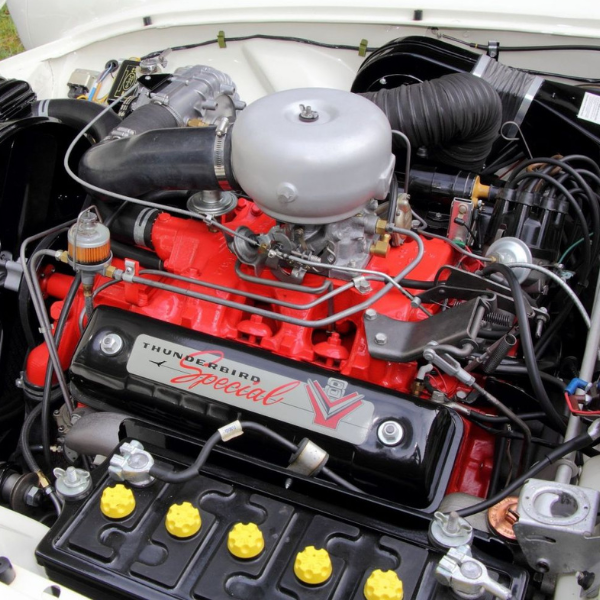

In 1957, Ford offered the 312 in the Thunderbird with a factory-installed McCulloch centrifugal supercharger, making it one of the first factory-supercharged American production V8s. The supercharged 312 produced approximately 300 hp and made the 1957 T-Bird one of the fastest American production cars of its era. Standard naturally aspirated 312 versions were used across the Thunderbird, Fairlane, Crown Victoria, F-100 truck, and Edsel lineups.

Signs You Need a Replacement Engine

• Valve clatter that does not quiet after warm-up- oil not reaching the rocker arms through the pushrods, indicating clogged hollow pushrods or incorrect oil viscosity
• Blue smoke on startup- valve guide wear from improper oiling, the most common Y-Block failure mode
• Knock or rattle under load- bearing wear on high-mileage units
• Oil consumption beyond 1 quart per 1,000 miles- valve guide or ring failure
• Overheating- the Y-Block cooling system can become restricted on aged engines
• Loss of compression on one or more cylinders- ring or valve seat failure

Known Problems With This Engine

• Top-oiling system neglect: The 312 Y-Block oils the valvetrain through hollow pushrods. If run with oil that is too thin, or if the hollow pushrods have become partially clogged over decades of service, the rocker arms and valve stems receive insufficient lubrication. This is the primary cause of premature valve guide wear on high-mileage Y-Blocks. We inspect the oiling system specifically on every unit.
• Oil pan removal requires engine removal: In most Y-Block applications, the deep-skirted block prevents oil pan removal without pulling the engine from the vehicle. This makes routine bottom-end inspection difficult and means many Y-Blocks have never had their oil pan off since leaving the factory.
• Limited parts availability: The 312 Y-Block has been out of production since 1960. Parts- particularly pistons, rings, and valve train components- are available from Y-Block specialty suppliers but lead times can be long and prices are higher than for later Ford V8s.
• Supercharged variant service: The 1957 McCulloch supercharged 312 requires the original supercharger unit and specific carburetor setup. Replacement McCulloch units are essentially unavailable new- rebuilt units from specialists are the only option.
• Bearing clearance: High-mileage Y-Blocks frequently show main and rod bearing wear. We inspect all accessible bearing indicators and compression test every unit before shipping.

Ford 312 Y-Block Variants by Application

The 312 was produced in several configurations across its 1956 to 1960 production run:

What Is Included- What Is Not Included

Vehicle Compatibility- Direct Fit

The Ford 312 Y-Block was factory installed in the following vehicles:

The 312 Y-Block uses a different bellhousing bolt pattern from later Ford Windsor and FE engines. It is not directly swap-compatible with 289, 302, or 351W engines without adapter plates. For a like-for-like restoration replacement, match the original 312 application exactly.

Transmission compatibility: Ford-O-Matic 2-speed automatic- most common period pairing | Ford 3-speed manual- base applications. The Y-Block bellhousing pattern is unique to the Y-Block family.

Common Names and Search Terms

Used OEM vs Rebuilt vs Aftermarket- Which Is Right for You?

Used OEM is the right choice for a Thunderbird, Crown Victoria, or F-100 restoration where a tested compression-confirmed 312 is the foundation. Clean Y-Block units are genuinely scarce- a tested unit is a significant find.

A specialist rebuild makes sense for a show-quality Thunderbird or if the unit you receive needs internal work. Y-Block rebuild specialists are a small but dedicated community. Call us and we can advise on the current unit’s condition and whether a rebuild is warranted.

Condition and Inspection Process

• Compression test across all 8 cylinders- pressure per cylinder recorded
• Hollow pushrod oiling system inspected- pushrod flow checked for restrictions
• Valve cover inspection for evidence of valve guide wear and oil burning
• Visual inspection of block and heads for cracks, scored journals, stripped threads
• Oil pan drain inspection for metal contamination
• Variant confirmed- standard or supercharged application documented

Mileage varies by unit. Where available from the donor vehicle we provide it. Where mileage cannot be confirmed, we disclose this before your order is placed.

Buyer Tips- What to Know Before You Order

• Oil viscosity matters: The Y-Block top-oiling system requires sufficient oil viscosity to maintain flow through the hollow pushrods. Modern thin synthetic oils can be too low in viscosity for the Y-Block oiling system. Many Y-Block specialists recommend 10W-40 or 15W-40 conventional or synthetic blend oil.
• Hollow pushrods: Before installation, verify that all 16 hollow pushrods are clear and flowing. A simple test is to blow compressed air through each one. A clogged pushrod will starve that cylinder’s rocker arm and valve guide.
• Oil pan service: If the oil pan has not been off in decades, plan to drop it at installation even though it requires engine removal in most applications. Sludge and debris in a neglected Y-Block oil pan is common.
• Supercharged 312 parts: If buying a supercharged 312 unit, the McCulloch supercharger, specific intake, and associated hardware are not commonly available. Source these components before committing to a supercharged build.
• Bellhousing pattern: The Y-Block bellhousing pattern is unique. Verify that your vehicle’s existing bellhousing and transmission are correct for a Y-Block before ordering.

FAQs

What makes the Ford Y-Block engine different from other Ford V8s?
