Ferrari F430 Engine for Sale | F136 4.3L V8 Flat-Plane Crank

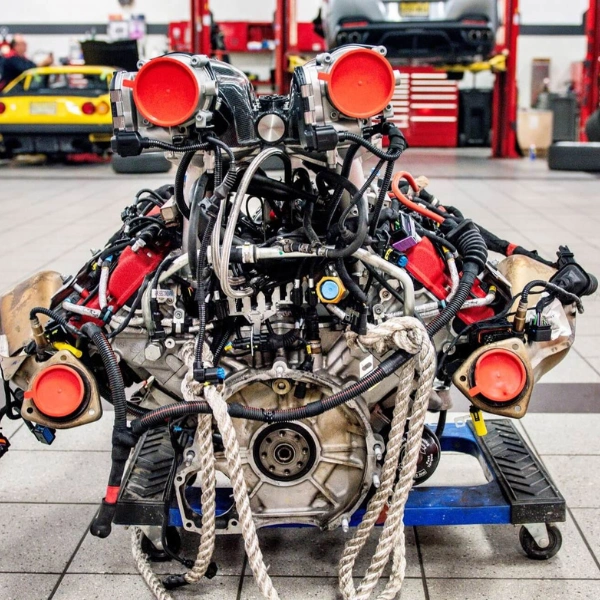

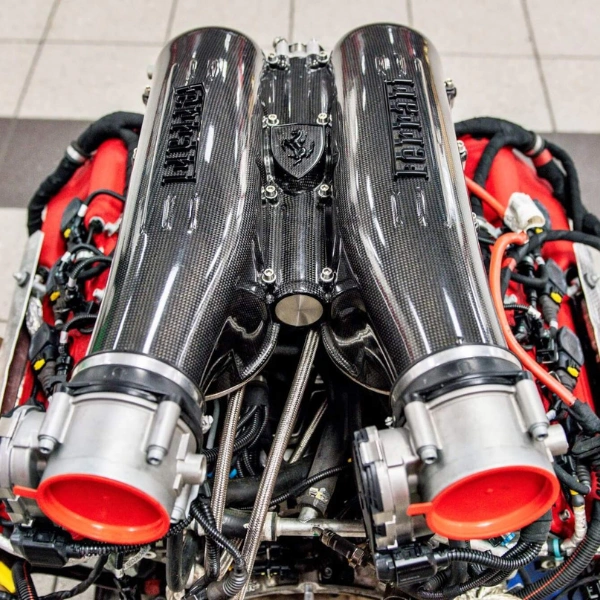

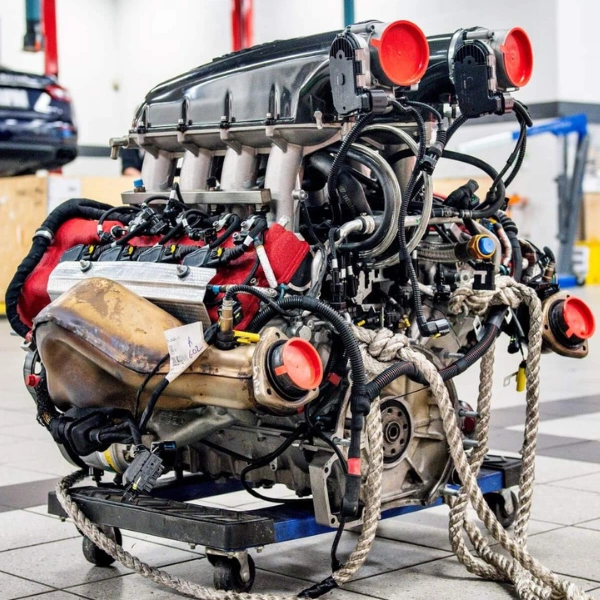

About This Engine

The Ferrari F430 engine is one of the most technologically significant naturally aspirated V8 engines ever produced for a road car. Introduced in 2004 as the heart of the F430 Berlinetta, it is a completely new design- Ferrari explicitly stated it shares no components with the 360 Modena’s engine. The 4.3-liter F136 E was developed by applying technology from Ferrari’s Formula 1 division directly to a road car: the 4-valve cylinder heads, intake trumpets, and variable valve timing system were derived from contemporary F1 engine design.

The flat-plane crankshaft- with 180 degrees between throws rather than the 90-degree cross-plane arrangement used by American V8s- is responsible for several of the F430’s defining characteristics. It allows the engine to rev more freely, respond more sharply to throttle inputs, and produce the distinctive exhaust note that Ferrari V8 engines are known for. At 8,500 rpm with 483 hp from 4.3 liters, the F430 engine produces approximately 112 horsepower per liter- a figure that rivals purpose-built racing engines.

The engine was used in three variants: the standard Berlinetta coupe, the Spider convertible (same output, slightly heavier car), and the Scuderia (503 hp, revised valve timing, titanium wheel nuts and extensive weight reduction program). We document and confirm the specific variant of every unit before shipping.

Signs You Need a Replacement Engine

• Oil consumption above manufacturer specified intervals- internal seal deterioration on high-mileage or poorly maintained examples
• Check engine lights related to individual cylinder misfire- ignition coil or injector failure on aged units
• Rough idle that does not respond to basic service- DISA variable intake or sensor fault
• Overheating- the F430 cooling system is sensitive and must be maintained with Ferrari-specified coolant
• Oil leaks at rear main seal or cam cover gaskets- common on aged examples
• VTEC-style cam timing fault codes- variable valve timing actuator wear

Known Problems With This Engine

• Dry sump system maintenance: The F430 uses a dry sump oiling system. Neglected oil service intervals are a leading cause of bearing failure in high-revving Ferrari V8 engines. We inspect all accessible external oiling system components and note service indicators before shipping.
• Cam cover gasket seeps: The cam cover gaskets on aged F430 engines are a documented seep point. We inspect all cam cover areas and note any seepage before shipping.
• IMS-style bearing concern awareness: Unlike Porsche flat-six engines, the F430 does not suffer from the same intermediate shaft bearing issue- however buyers from the flat-six world sometimes ask. The F430’s failure modes are different and primarily maintenance-related.
• Clutch actuator wear on F1 gearbox cars: F430s equipped with the paddle-shift F1 gearbox use an electrohydraulic clutch actuator that can wear or develop leaks. This is a gearbox component- not included with the engine- but we note it when relevant.
• Generation and variant compatibility: F430 engines from different variants are not directly interchangeable without verifying ECU, wiring harness, and exhaust manifold compatibility. We confirm variant before every order.

Ferrari F430 Variants and Engine Specifications

Three F430 variants used the F136 family engine in different states of tune:

What Is Included- What Is Not Included

Vehicle Compatibility

The Ferrari F430 F136 engine was used exclusively in the following Ferrari vehicles:

The F430 engine is a mid-mounted unit designed for the specific F430 chassis architecture. It is not a practical swap candidate for non-Ferrari vehicles due to its unique dry sump system, ECU integration, and subframe mounting. For any F430 engine work, a Ferrari-specialized shop is required.

Transmission compatibility: Ferrari 6-speed manual gearbox (Graziano)- standard | Ferrari F1 electrohydraulic paddle-shift- optional. Both are transaxle units specific to the F430 chassis.

Common Names and Search Terms

Used OEM vs Rebuilt- Which Is Right for You?

Used OEM is the only practical option for most F430 engine repair projects. New factory engines are not available through standard channels. Our inspected units provide a documented engine as the foundation for your repair.

A specialist Ferrari engine rebuild is appropriate for a show car or a dedicated track build requiring fresh tolerances. Ferrari specialists and Tipo Certificato-approved shops can perform full engine rebuilds, though at significant cost. Call us and we will discuss what fits your project and budget.

Condition and Inspection Process

• Full external inspection of block, heads, cam covers, and all accessible engine components
• Dry sump system inspection- external oil passages and connection points assessed
• Cam cover and gasket surface inspection for seepage
• Mileage documented where available from service records
• Engine code and variant confirmed- Berlinetta, Spider, or Scuderia identified before shipping
• Inspection documentation provided before order confirmation

Mileage varies by unit. Where available we provide it. Where it cannot be confirmed, we disclose this before your order is placed.

Buyer Tips- What to Know Before You Order

• Specialist installation required: F430 engine replacement is not a general shop job. A Ferrari-specialized independent shop or Ferrari dealership service center is required for this work.
• ECU compatibility: The F430 uses a Bosch Motronic ME7.1 ECU that in some configurations is VIN-linked or variant-specific. Confirm ECU compatibility before confirming your order.
• Dry sump service: The dry sump tank, oil scavenge lines, and external oil pump must be inspected and serviced at the time of engine replacement. These are not included with the engine.
• Variant confirmation: Standard F430, Spider, and Scuderia engines have different ECU calibrations and exhaust manifold configurations. Confirm your specific variant before ordering.
• Service records: Request all available service documentation for the unit you are considering. We provide everything available from the donor vehicle history.

FAQs

What is the F136 engine?
