Chevy Equinox 2.4 Engine for Sale | Ecotec LAF LEA Inline-4 (2010 to 2017)

About This Engine

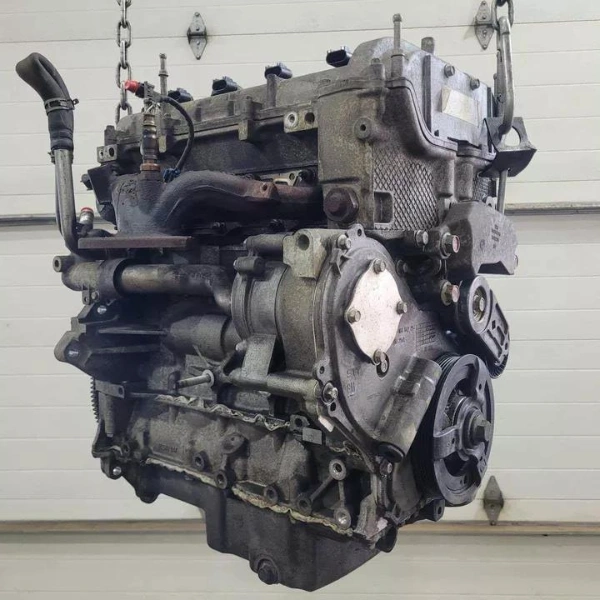

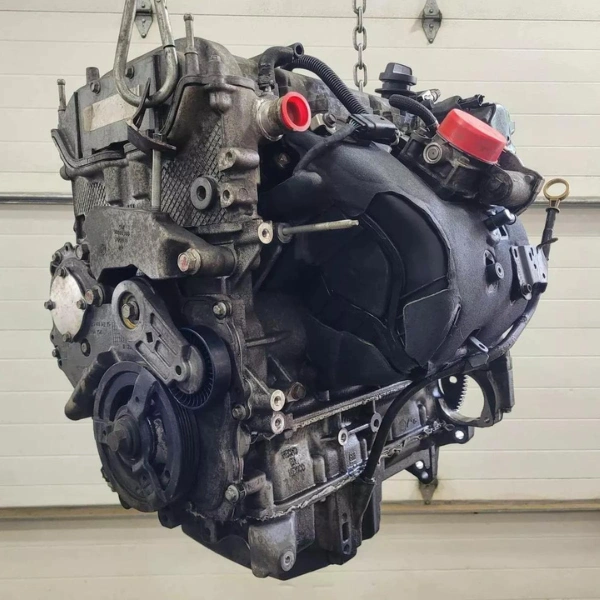

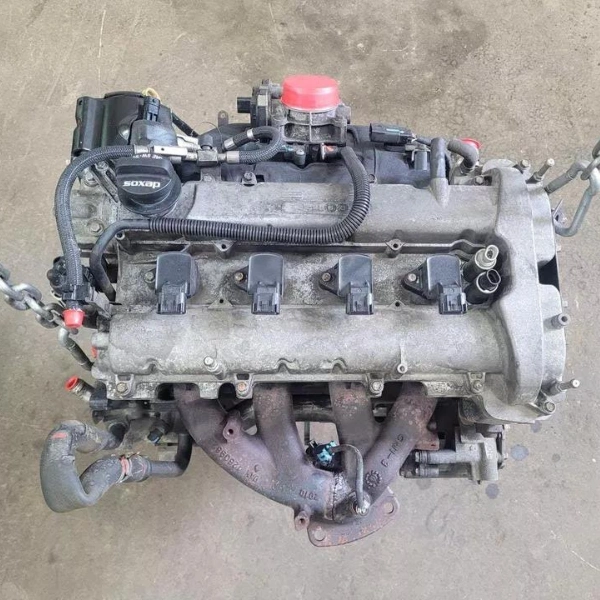

The Chevrolet Equinox 2.4L engine (GM Ecotec LAF and LEA) is a 2.4-liter naturally aspirated DOHC inline-four that powered the second-generation Equinox and GMC Terrain from 2010 through 2017. Part of GM’s Ecotec engine family, it produces 182 hp and 172 lb-ft of torque from an all-aluminum construction with high-pressure direct injection- delivering competitive performance and fuel economy for its segment and era.

The 2.4L Ecotec is an honest engine that requires honest discussion. Two documented issues have affected this engine disproportionately across its production run. First, excessive oil consumption: the low-tension piston rings designed to reduce friction tend to develop carbon buildup in their grooves over time, locking them in place and allowing oil to bypass into the combustion chamber. Affected owners report consumption of 1 quart per 1,000 to 2,000 miles- and because direct injection means no fuel washing the intake valves, carbon deposits compound the issue. Second, timing chain stretch or failure: the chain can stretch prematurely or jump teeth, particularly on engines running low on oil. These two issues are related- low oil from consumption reduces tensioner hydraulic pressure, accelerating chain wear.

The good news: both conditions are assessable before shipping, and both are addressable at installation with proper maintenance going forward. We specifically inspect for these conditions on every unit before it ships. An Equinox 2.4 that has been properly maintained with regular oil changes and prompt oil level monitoring can deliver reliable service well past 150,000 miles.

Signs You Need a Replacement Engine

• Rattle or ticking noise on cold start that persists more than a few seconds- timing chain slack from stretch or worn tensioner. This is the most serious sign and warrants immediate inspection.
• Oil level dropping between changes without visible leaks- piston ring carbon buildup causing oil consumption. Check oil level every 1,000 miles on any 2.4 Ecotec.
• Blue-grey exhaust smoke- oil burning from ring bypass. More noticeable on cold starts or after extended idle.
• Check engine light with cam timing fault codes- variable valve timing actuator wear or timing chain position error
• Carbon buildup symptoms- rough idle, hesitation, reduced throttle response, particularly on short-trip vehicles. Carbon deposits on intake valves from direct injection.
• PCV system failure- crankcase pressure buildup causing oil leaks from rear main seal or valve cover gaskets

Known Problems With This Engine

• Piston ring oil consumption- the 2.4 Ecotec’s most documented owner complaint: The low-tension piston rings develop carbon buildup in their grooves, locking them and allowing oil to bypass into the combustion chamber. GM acknowledged this and offered extended powertrain warranty coverage on affected vehicles. We inspect piston ring condition indicators- oil smoke, compression uniformity, and oil consumption signs- before shipping.
• Timing chain stretch and failure: The timing chain can stretch prematurely, particularly on engines that have run low on oil. Stretched chain causes cam timing retardation, rough running, and fault codes. A failed chain causes catastrophic valve damage. We specifically listen for timing chain rattle and assess chain tension indicators before shipping.
• Carbon buildup from direct injection: The GDI fuel system injects fuel directly into the cylinders, bypassing the intake valves. This means oil vapor from the PCV system deposits carbon on the intake valves without fuel washing them. At 60,000 to 80,000 miles, walnut blasting is recommended. We note visible carbon indicators where accessible.
• PCV system failures: The PCV (positive crankcase ventilation) system can fail or become restricted, causing crankcase pressure buildup that forces oil past gaskets and seals. The PCV orifice in the intake manifold is particularly prone to icing and blockage in cold climates. GM issued Technical Service Bulletin 14882 for this issue.
• LAF single VVT vs LEA dual VVT compatibility: The LAF uses variable valve timing on the intake cam only. The LEA uses dual VVT on both intake and exhaust. While the basic architecture is shared, components specific to the VVT system differ. We confirm variant before every order to prevent mismatch.

GM 2.4L Ecotec LAF vs LEA- Key Differences

Two variants were used in Equinox and Terrain applications:

Feature	LAF (2010 to 2011)	LEA (2012 to 2017)
VVT	Single VVT- intake cam only	Dual VVT- intake and exhaust camshafts
FlexFuel	No	Yes- E85 capable
Production Years	2010 to 2011	2012 to 2017
Power Output	182 hp at 6,700 rpm	182 hp at 6,700 rpm
Overall Architecture	Nearly identical to LEA	Nearly identical to LAF- same bore, stroke, compression
Key Recommendation	Acceptable replacement. Consider LEA if given choice.	Preferred variant- dual VVT and FlexFuel capability.

What Is Included- What Is Not Included

INCLUDED- Long Block	Aluminum block, crankshaft, pistons, connecting rods, dual camshafts, aluminum DOHC head, valve train, oil pan, front timing cover.
NOT INCLUDED	Intake manifold, throttle body, fuel injectors and high-pressure fuel pump, alternator, power steering pump, A/C compressor, starter, engine mounts, ECU and wiring harness.
Core Note	No core charge.

Vehicle Compatibility

The GM 2.4L Ecotec LAF/LEA was factory installed in the following vehicles:

Chevrolet Equinox (2nd generation)	2010 to 2017- standard base engine
GMC Terrain (1st generation)	2010 to 2017- mechanical twin of Equinox
Chevrolet Captiva (some markets)	2010 to 2017
Note	The 2.4L is also used in other GM vehicles including Chevrolet Malibu, Buick Regal, and others- confirm specific variant code for non-Equinox applications

The 2.4L Ecotec uses GM’s standard Ecotec bellhousing pattern and motor mounts. It is a direct replacement in any Equinox or Terrain that originally used this engine. For non-Equinox applications, confirm the specific variant code and accessory configuration before ordering.

Transmission compatibility: GM 6T40 6-speed automatic- standard Equinox and Terrain pairing. Confirm FWD or AWD configuration as the transmission variant differs.

Common Names and Search Terms

Chevy Equinox 2.4	Most common buyer search
Equinox engine	Application search
GM 2.4 Ecotec	Family designation
LAF engine	Code-specific buyer
LEA engine	Code-specific buyer
2.4 Ecotec direct injection	Architecture buyer
GMC Terrain 2.4 engine	Twin application buyer
Equinox 2.4L engine	Liter-format buyer
2.4 Ecotec engine for sale	Full designation buyer
Equinox engine replacement	Replacement buyer intent

Used OEM vs Rebuilt- Which Is Right for You?

Used OEM is the right choice for a direct Equinox or Terrain replacement- particularly where a compression-tested unit with timing chain condition and oil consumption indicators assessed is needed at a fraction of reman cost. Our units are documented with variant, timing chain assessment, and oil consumption indicators.

A remanufactured 2.4 Ecotec makes sense if you want fresh tolerances and longer warranty. Several GM-authorized remanufacturers produce 2.4L Ecotec units at $1,800 to $3,500. Call us to discuss current unit condition and whether a reman is more appropriate.

Condition and Inspection Process

• Compression test across all 4 cylinders- results per cylinder recorded. Uniform compression is important- variation suggests ring wear from oil consumption.
• Timing chain condition assessed- rattle at cold start duration measured, chain slack indicators noted. Any unit with clear chain failure signs is rejected.
• Oil consumption indicators assessed- oil smoke on startup, oil level in relation to any known history, piston ring condition indicators
• LAF vs LEA variant confirmed before shipping
• PCV system inspected where accessible
• Carbon buildup visual assessment at intake manifold area where possible

Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.

Buyer Tips- What to Know Before You Order

• Oil level monitoring is mandatory: Check the oil level every 1,000 miles on any 2.4 Ecotec. This engine can consume oil without visible smoke or leaks on mild cases. Running low on oil accelerates both piston ring failure and timing chain stretch. This is the single most important maintenance practice.
• Change oil more frequently than GM recommends: GM’s oil life monitor can recommend 10,000+ mile oil change intervals. For the 2.4 Ecotec, change oil every 5,000 miles maximum using full synthetic 5W-30 meeting GM dexos1 specification.
• Timing chain replacement is high-priority at installation if chain shows any noise: If the unit shows any cold-start chain rattle, budget for timing chain kit replacement at installation. The parts cost approximately $200 to $400. A failed timing chain causes complete engine destruction.
• Walnut blasting at installation: At installation or within the first 10,000 miles, have the intake valves walnut-blasted to remove carbon deposits. This addresses carbon buildup from direct injection and is especially important if the engine came from a vehicle with a history of short trips.
• PCV system service: Clean or replace the PCV valve and orifice in the intake manifold at installation. GM issued TSB 14882 for a plugged PCV orifice causing rear main seal leaks.
