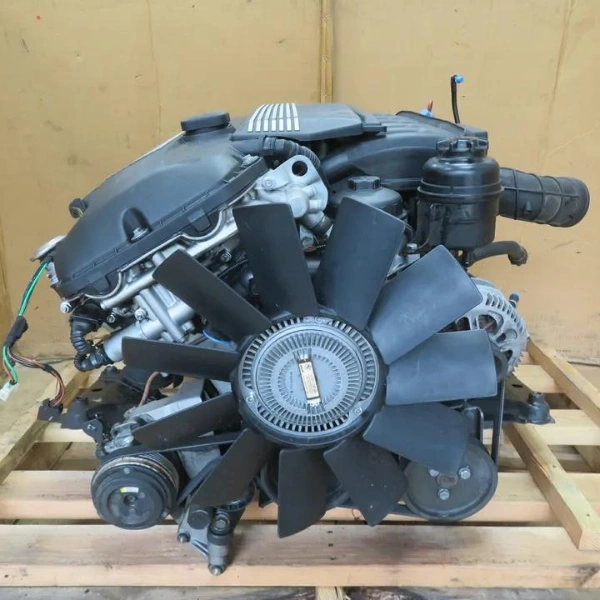

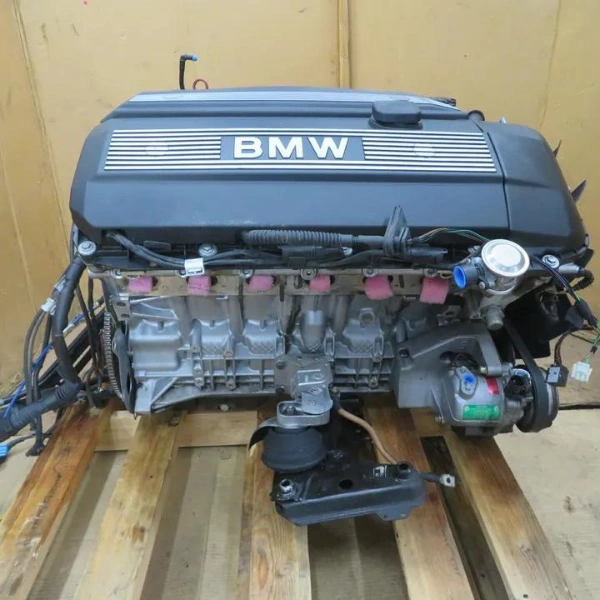

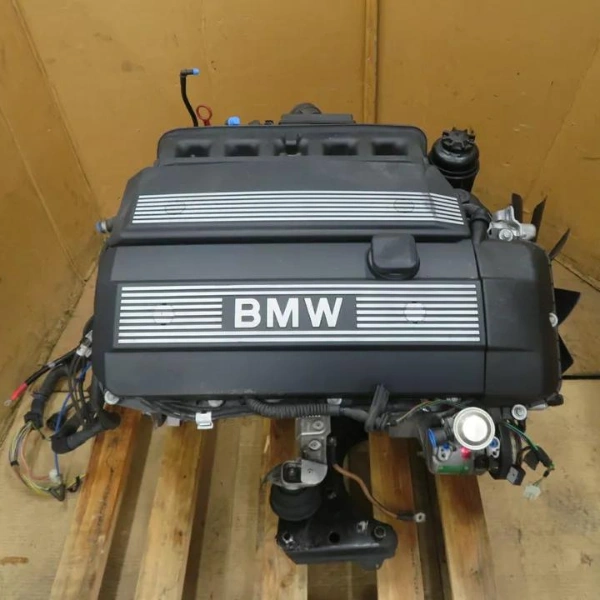

BMW M52 Engine for Sale | Inline-6 DOHC E36 E39 (1994 to 2000)

About This Engine

The BMW M52 is the inline-six DOHC engine that powered BMW’s core lineup from 1994 through 2000, covering the E36 3-series, E39 5-series, E38 7-series, and E36/7 Z3 roadster. It succeeded the acclaimed M50 by adding variable valve timing (single VANOS on intake), increasing displacement to 2.8 liters in its largest form, and transitioning to aluminum block construction in most markets. The M52 and its high-performance derivative (the S52, used in the US-market E36 M3) appeared on Ward’s 10 Best Engines list from 1997 through 2000.

The M52’s most important characteristic for buyers in the used engine market is the block material distinction. In most international markets, the M52 used an aluminum block with Nikasil cylinder bore coating- a nickel-silicon-carbide surface coating that provided excellent thermal properties but was vulnerable to sulfur corrosion in fuels with high sulfur content. Countries including the United States, Canada, and several others received cast iron cylinder blocks in most M52 applications to avoid this problem. The exception was the BMW Z3 in North America, which received the aluminum block M52B28.

From 1998, BMW introduced the M52TU- Technical Update- which added double VANOS (variable timing on both camshafts rather than just the intake), replaced Nikasil with Alusil bore coating in the aluminum block versions, and revised the head and block design to be nearly identical to the later M54 that replaced it in 2000. The M52TU head and block parts are largely interchangeable with the M54- making the M52TU one of the most easily updated and best-supported of the M52 variants.

Signs You Need a Replacement Engine

• Cold-start VANOS rattle lasting more than 3 to 4 seconds- single VANOS (M52) or double VANOS (M52TU) solenoid screen clogging. Normal VANOS engagement is a brief rattle that clears quickly.
• Loss of power or rough idle- VANOS seal degradation reducing cam timing authority, or Nikasil bore wear on early aluminum-block units (compression test will reveal bore wear)
• Coolant loss or overheating- plastic cooling system components including thermostat housing, expansion tank, and water pump impeller are known failure points on all M52 engines
• Oil leaks at valve cover gasket and oil filter housing- the two most common external oil leak points on aged M52 engines
• Hard starting or rough running- VANOS solenoid screen clogged with sludge from infrequent oil changes
• Compression loss across multiple cylinders on aluminum-block M52- Nikasil bore wear on early units exposed to high-sulfur fuel

Known Problems With This Engine

• Nikasil bore wear- the early aluminum-block M52’s critical weakness: The Nikasil cylinder bore coating is vulnerable to sulfur in fuel. Where fuel quality was poor, sulfur corroded the Nikasil, causing premature cylinder wall wear and compression loss. This appears as low, declining compression across multiple cylinders. US-market M52s (except Z3) have iron blocks that avoid this entirely. We confirm block type before every order. Any aluminum-block unit with suspected Nikasil wear is rejected.
• Cooling system plastic components: Like all BMW inline-sixes of this era, the M52 uses plastic thermostat housing, water pump impeller, and expansion tank components that degrade over time. Replacing these at installation is mandatory. Overheating destroys the DOHC aluminum head.
• Single VANOS seal degradation (standard M52): The single VANOS on the intake camshaft uses internal rubber O-rings and seals that dry out and crack with age. Degraded seals reduce VANOS function causing rough idle, hesitation at partial throttle, and cold-start rattle. VANOS rebuild kits with updated Viton seals are widely available for approximately $100.
• M52TU double VANOS solenoid screen clogging: The dual VANOS solenoid screens clog with sludge on engines with extended oil change intervals. We inspect VANOS solenoid area and note fault indicators before shipping.
• Oil filter housing gasket- the most common M52 oil leak: The oil filter housing gasket is the most common source of external oil seepage on aged M52 engines. We inspect this area specifically before shipping.

BMW M52 Variants and Applications

Three displacement variants across the M52 family, each with standard and TU (Technical Update) versions:

What Is Included- What Is Not Included

Vehicle Compatibility

The BMW M52 was factory installed in the following vehicles:

The M52 uses the same motor mount architecture as the M50 and M54, making it a direct swap between these engine families in most BMW chassis. For E30 installations, period-correct mounts or E30-to-M52 adapter mounts are required. The M52TU’s head and block are nearly interchangeable with the M54- making the TU a bridge between the two generations.

Transmission compatibility: ZF S5-31 5-speed manual- standard on most E36 applications | ZF S5-39 5-speed manual- E39 and Z3 applications | ZF GS6 6-speed manual- some later applications | GM 5L40-E 5-speed automatic | ZF 5HP18/5HP24 5-speed automatic. Confirm your specific application before ordering.

Common Names and Search Terms

Used OEM vs Rebuilt- Which Is Right for You?

Used OEM is the right choice for a direct E36 328i, E39 528i, or Z3 2.8 replacement- particularly where a compression-tested unit with block type (Nikasil vs iron) and VANOS generation (single vs double) confirmed is needed. Our M52 units are documented with these critical distinctions before shipping.

A rebuilt M52 from a BMW specialist makes sense for a build requiring specific power output, fresh tolerances, or VANOS rebuild throughout. BMW specialists can rebuild an M52B28 with updated VANOS seals, fresh timing chain, and cooling system components. Call us to discuss current unit condition.

Condition and Inspection Process

• Compression test across all 6 cylinders- results per cylinder recorded. Uneven or declining compression on multiple cylinders in an aluminum-block M52 indicates possible Nikasil wear.
• Block type confirmed- iron (US-spec E36/E39) or aluminum (Z3, European applications) documented before every order
• M52 generation confirmed- standard single-VANOS or M52TU double-VANOS documented
• VANOS solenoid area inspected- cold-start rattle duration assessed
• Cooling system component inspection- expansion tank crack check, water pump external condition assessed
• Oil filter housing gasket area inspected for active seepage

Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.

Buyer Tips- What to Know Before You Order

• Replace the cooling system at installation- mandatory: Water pump, thermostat, expansion tank, and all rubber hoses must be replaced. The plastic impeller water pump failure causes overheating that destroys the aluminum DOHC head. Cost of parts is under $300.
• Know your block type before calling: A US-market E36 328i or E39 528i (except Z3) will have an iron block M52- no Nikasil concern. A Z3 2.8 will have an aluminum block. A European-market car can be either, depending on production date and market.
• VANOS service: For a standard M52 (single VANOS), rebuild the VANOS unit with updated Viton O-ring kits at installation if the engine shows any rattle beyond 3 seconds on cold start. Cost is approximately $100 in parts. For an M52TU (double VANOS), the same applies to both units.
• M52 oil specification: Use BMW-approved full synthetic 5W-30 (Castrol Edge BMW Longlife-98 or equivalent). Change every 7,500 miles or less. The VANOS seals degrade faster with degraded oil.
• M52TU as upgrade consideration: If choosing between a standard M52B28 and an M52TUB28, the TU is the better choice- double VANOS, Alusil bore coating instead of Nikasil, and nearly M54-level reliability.

FAQs

What is the Nikasil problem on the BMW M52?
