6.0 Chevy Engine for Sale | GM Vortec 6000 V8 LS Architecture

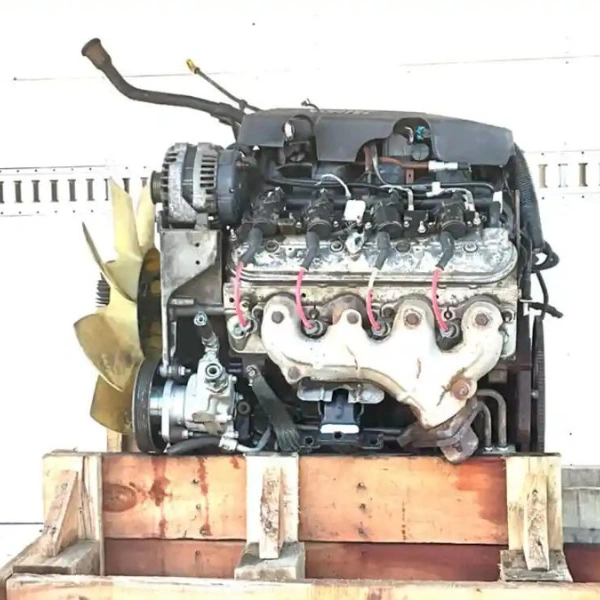

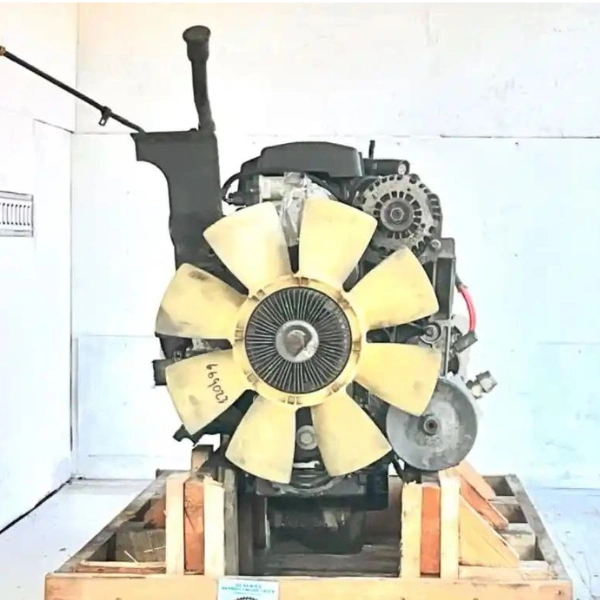

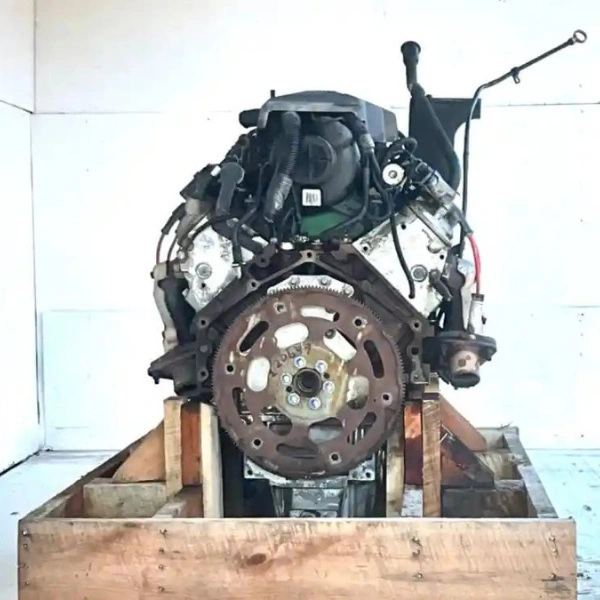

About This Engine

The GM 6.0L Vortec 6000 is a family of cast iron and aluminum block V8 engines based on the LS small block architecture, produced from 1999 through 2019. The 6.0L Vortec was the dominant heavy duty truck V8 in GM heavy duty pickups, full-size SUVs, vans, and the Hummer H2 throughout that period. With 6.0 liters of displacement, 4.00 x 3.62 inch bore and stroke, and modern LS architecture (deep skirt block, 6 bolt cross-bolted main bearing caps, aluminum cylinder heads from 2001 onward), the Vortec 6000 produced 300 to 369 horsepower depending on variant and provided the foundation for countless LS swap projects.

Ten distinct factory variants of the 6.0L Vortec exist, divided into Gen III (1999 to 2007) and Gen IV (2007 to 2019). Gen III variants are the LQ4 (300-335 hp, 9.4:1 compression, dished pistons, 1999-2007) and the LQ9 / VortecMAX (345 hp, 10.1:1 compression, flat-top pistons, 2002-2007). Gen IV variants include the L76 (366 hp with AFM), LY6 (360-369 hp with VVT), LFA (332 hp aluminum block hybrid), L96 (360 hp with VVT and flex fuel, 2010-2019), L77 (360 hp E85 capable AFM, passenger cars), LZ1, and LC8 (special applications including CNG conversion). The LS2 6.0L (Corvette C6, Pontiac G8 GT 2008-2009) shares the same displacement but uses a different camshaft and intake manifold and is technically a passenger car engine, not a Vortec 6000.

All Vortec 6000 variants share the same 4.00 x 3.62 inch bore and stroke (101.6 mm x 92 mm) and 6.0L displacement. All variants share the LS bell housing bolt pattern, making them swap-friendly with the 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, 6L80, 6L90 transmissions. Block material is cast iron on all variants except the LFA hybrid (aluminum). Cylinder heads are aluminum on all variants except the 1999-2000 LQ4 (which used cast iron heads). The 6 bolt cross-bolted main bearing caps and deep skirt design provide exceptional bottom end strength, making the 6.0L Vortec one of the most popular LS swap engines for high horsepower forced induction builds (1,000 plus horsepower is achievable on stock blocks).

A documented used OEM 6.0L Vortec with verified variant, generation, AFM status, VVT status, lifter condition, and donor history is the right replacement for any Silverado HD, Sierra HD, Suburban, Yukon XL, Tahoe, Avalanche, Express, Savana, Hummer H2, or Cadillac Escalade owner, as well as the right starting point for LS swap projects. We document the variant, generation, AFM/VVT/flex fuel status, donor vehicle, and inspect lifter condition (critical for AFM lifter failure on L76, L77, L96) before shipping every order.

Signs You Need a Replacement Engine

• AFM (Active Fuel Management) lifter failure on L76, L77, L96 variants – the #1 documented Vortec 6000 failure pattern
• Cylinder misfire, particularly on cylinders 1, 4, 6, 7 (the four cylinders that AFM deactivates) due to lifter collapse
• Bent pushrods after AFM lifter failure
• Broken exhaust manifold bolts causing exhaust leak (very common across all 6.0L Vortec variants)
• Knock sensor failures (corrosion in valley pan area)
• Water pump leaks (40,000 to 80,000 mile wear interval)
• Excessive oil consumption beyond 1 quart per 1,000 miles, particularly on AFM units
• Cylinder wall scoring on heavily neglected oil-starved units
• Loss of compression on one or more cylinders
• Cracked iron blocks from overheating (rare but documented)

Known Things to Know Before You Buy

• AFM (Active Fuel Management) lifter failure is the #1 known issue on Gen IV variants (L76, L77, L96 in particular). The AFM hydraulic lifters fail in deactivation mode and can cause bent pushrods, head damage, and cam wear. Many builders preventively delete AFM (replace with non-AFM lifters and a non-AFM cam) at install. Plan for AFM delete on L76, L77, L96 sourcing.
• LY6 does NOT have flex fuel capability. L96 (which replaced LY6 in 2010) DOES have flex fuel. Otherwise the engines are nearly identical (same iron block, aluminum heads, VVT, cathedral port heads).
• LFA is the only aluminum block 6.0L Vortec. Used in the GMT900 hybrid trucks (Silverado/Sierra/Tahoe/Yukon Hybrid 2008-2009, Cadillac Escalade Hybrid). 332 hp with 10.7:1 compression. Less common in salvage market.
• 1999-2000 LQ4 had cast iron cylinder heads and cable-operated throttle. 2001-2007 LQ4 had aluminum heads. 2003+ LQ4 had drive-by-wire electronic throttle. Match the year to your vehicle harness expectations.
• LQ9 / VortecMAX is the high-output variant (345 hp / 380 lb-ft) used in the 2002-2007 Cadillac Escalade, ESV, EXT, Chevrolet Silverado SS, Chevrolet Avalanche VortecMAX, and GMC Yukon Denali. Flat-top pistons and 10.1:1 compression.
• Exhaust manifold bolts breaking is documented across ALL 6.0L Vortec variants. ARP exhaust manifold studs are a popular preventive upgrade.
• Knock sensors fail due to corrosion from coolant intrusion in the lifter valley. Plan for knock sensor replacement and valley pan reseal at install.
• LS architecture: All 6.0L Vortec variants use the LS bell housing bolt pattern, making them compatible with the 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, 6L80, 6L90, and aftermarket LS-spec manual transmissions (T56, TR-6060, etc.).
• LS2 6.0L vs Vortec 6000: The LS2 (Corvette C6, Pontiac G8 GT 2008-2009, Saab 9-7X Aero, Australian HSV products) is a 6.0L passenger car engine with a different camshaft, intake manifold, and ECU calibration. It is NOT a Vortec 6000. The Vortec 6000 is a truck-spec engine.

6.0L Vortec / LS-Based Variants by Year and Application

Verified factory variants:

What Is Included, What Is Not Included

Vehicle Compatibility, Direct Fit

Direct factory applications:

LS Swap Targets (Most Common Vortec 6000 Use Case)

The 6.0L Vortec is one of the most popular LS swap engines due to displacement, iron block durability, and aftermarket support. Common swap configurations:

Transmission compatibility (factory pairings): 4L60E 4 speed automatic (light duty Gen III applications), 4L65E 4 speed automatic, 4L70E 4 speed automatic (Gen IV), 4L80E 4 speed automatic (HD truck applications, the most common Vortec 6000 transmission), 4L85E 4 speed automatic (HD), 6L80 6 speed automatic (Gen IV light duty), 6L90 6 speed automatic (Gen IV HD, replaced 4L80E in some applications). Aftermarket LS-spec manual transmissions: T56 6 speed, TR-6060 6 speed, Tremec TKO. The 6.0L Vortec uses the LS bell housing bolt pattern, making it directly compatible with all LS-era GM transmissions.

Common Names and Search Terms

Used OEM vs Rebuilt vs Built 6.0L Vortec

A documented used OEM 6.0L Vortec from a known donor with verified compression, variant confirmation, AFM/VVT status, lifter condition, and donor history is the most cost effective option for most replacement and LS swap projects. Pricing is roughly half of a remanufactured unit. Our 6.0L Vortec engines are compression tested across all 8 cylinders, variant confirmed, AFM lifter condition inspected (critical for L76, L77, L96), and donor history disclosed where available.

A professionally rebuilt 6.0L Vortec from a specialty LS shop typically runs $3,500 to $6,500 plus core charge depending on variant. Standard rebuild includes new bearings, rings, gaskets, head gasket, water pump, timing chain components, oil pump, and valve job. AFM delete (non-AFM cam and lifters) is a popular option on Gen IV variants.

A built 6.0L LS engine for forced induction (turbo, supercharger, or nitrous) runs $7,500 to $15,000 plus depending on power target. The 6.0L iron block can handle 1,000 plus horsepower with appropriate supporting hardware (forged crank, forged rods, head studs, cam, valvetrain). Built makes sense for serious LS swap projects targeting 700 plus hp.

Condition and Inspection Process

• Compression test across all 8 cylinders, pressure per cylinder recorded
• Visual inspection of block for cracks
• Cylinder heads inspected for warping or cracks
• Variant confirmed (LQ4, LQ9, L76, LY6, LFA, L96, L77, LZ1, LC8)
• Generation documented (Gen III 1999-2007 or Gen IV 2007+)
• AFM (Active Fuel Management) status disclosed
• VVT status documented (Gen IV variants)
• Lifter condition inspected via valve cover removal where possible (critical for AFM units)
• Knock sensor and valley pan condition disclosed
• Exhaust manifold bolt status disclosed
• Donor vehicle (Silverado HD, Sierra HD, Suburban, Hummer H2, etc.) confirmed
• Year and ECU calibration code documented

Mileage on 6.0L Vortec engines is documented from the donor vehicle when available. HD truck Vortec 6000 donors often have 200,000 plus miles given commercial use. Where mileage cannot be verified, we disclose this clearly before shipping.

Buyer Tips, What to Know Before You Order

• Confirm variant first: Ten distinct variants exist with different output, AFM status, VVT, and flex fuel capability. Match the variant to your vehicle year and application.
• For Gen IV variants with AFM (L76, L77, L96): Plan for AFM delete at install (non-AFM cam and lifters). The AFM lifter failure pattern is well documented and preventive deletion is standard practice in the LS community.
• ARP exhaust manifold studs are a strongly recommended preventive upgrade on any 6.0L Vortec rebuild. Exhaust manifold bolt failure is universal across the family.
• Knock sensor replacement and valley pan reseal is recommended at install on any high mileage donor.
• For LS swap projects: The 6.0L Vortec is the most popular LS swap displacement. Iron block handles boost very well. Aluminum LFA hybrid block is lighter but limited supply.
• For Holden / Pontiac G8 GT owners: The LS2 is NOT a Vortec 6000 despite the same displacement. Different camshaft and intake. Confirm engine code before purchase.
• Plan for fresh fluids, full spark plug set (8 plugs), and water pump at install regardless of donor history.
• 4L80E / 4L85E HD transmissions are the most common pairing for HD truck Vortec 6000 applications. The 6L90 replaced these in later applications.

FAQs

What variants of the 6.0L Vortec exist?
